Genium
Item #: 3B1-3=ST
Find Reimbursement Documents here.
Learn more about our Reimbursement Services
Overview

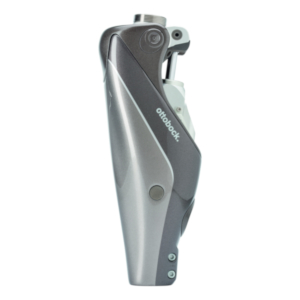

The Genium microprocessor knee provides the highest degree of intuitive function to individuals who need to adapt to changing environments, move quickly over short distances, or require more than 2 days of battery life.
- Optimized Physiological Gait 2.0
- Intuitive or Deliberate Stance options
- Stumble recovery feature
- Stairs and obstacles function
- Walk2Run function
- Sitting function
- Programmable MyModes: 5
- IP67 Rating: Water-resistant but not corrosion resistant. Protected from dust, sand, dirt, and temporary submersion in fresh water (up to 1m for 30min). Accidental water damage does not void the warranty.
- User-friendly Cockpit app for Android and iPhone
- Activity Report
Scope of delivery:
- 3B1-3=ST Genium (Threaded top, Volcano Shadow)
- 2R20 AXON Tube Adapter or 2R21 AXON Tube Adapter with Torsion
- 757L16-4 AC Adapter
- 4E60 Inductive Charger
- 4H100 Flexion Stop 15°
- 4H103 Flexion Stop 22.5° (already installed on delivery)
- "Cockpit 4X441-*" for Android and Apple for download http://www.ottobockgroup.com/cockpitapp
* iOS compatibility available with units purchased after October 31, 2018
Learn more about:Clinical Evidence / Resources
Important Safety Note: Entering a room or area with strong magnetic fields (e.g., MRI) can cause irreparable damage to microprocessor knees. Microprocessor knees should be removed before entering a room or area where strong magnetic fields exist.
Specifications
| Activity Level | K3, K4 |
|---|---|
| Maximum Body Weight | 330 lbs (150 kg) |
| Battery Life | Approximately 5 days |
| Maximum Knee Flexion Angle | 130 degrees |
| Color | Volcano shadow |
| Proximal Connection | Threaded top |
| Distal Connection | Tube Clamp (34 mm diameter) |
| Product Weight | 3.09 lbs (1,400 g) |
| Proximal System Height up to Alignment Reference Point | 26 mm |
| Minimum distal system height with 2R20 tube adapter | 298 mm |
| Minimum distal system height with 2R21 tube adapter (torsion unit) | 330 mm |
| Maximum distal system height with 2R20 tube adapter | 514 mm |
| Maximum distal system height with 2R21 tube adapter (torsion unit) | 546 mm |
| Material | Carbon |
| Moisture protection | Rated IP67 - water-resistant against splashed water from all sides |
| Standard Warranty | 3 years |
| Software Updates | Data Station |
Accessories
Spare parts
Documents
Genium Private Payer Coding and Billing (US only)
Reimbursement
PDF Document | Published: Jan 28, 2025
LL Prosthetic Activity Chart
Reimbursement: Documentation Guide
Reimbursement
PDF Document | Published: Apr 17, 2023
Genium – Bionic Prosthetic System 3B1/3B1=ST Information and Safety Signals - Information for Practitioner
Product Information
PDF Document | Published: Nov 26, 2014
3B1-3 Genium - Instructions for Use (Qualified Personnel)
Instructions for Use
PDF Document | Published: Nov 1, 2021
3B1-2 Genium - Instructions for Use (User)
Instructions for Use
PDF Document | Published: Feb 6, 2017
Fabrication Order Form for Transfemoral or Knee Disarticulation
Order Form
PDF Document | Published: Jul 2, 2021
3B1-2 Genium - Instructions for use (qualified personnel)
Instructions for Use
PDF Document | Published: Mar 1, 2017
The new Genium and X3: Know the difference
Product Information
PDF Document | Published: Oct 1, 2018
Know the Difference - MPKs, Water and IP Ratings
Product Information
PDF Document | Published: Dec 6, 2022
