Taleo Harmony

Item #: 1C52

Log in to order

Suggested HCPCS Coding: L5987+L5986+L5781
Contact reimbursement911@ottobock.com
Learn more about our Reimbursement Services

Overview

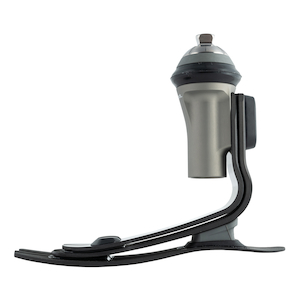

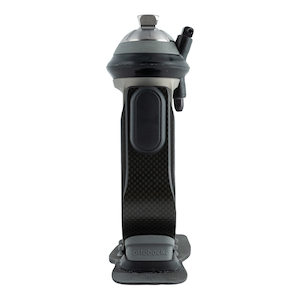

Taleo Harmony was designed for active individuals (K3) who navigate varied indoor and outdoor environments and place a high value on effortless walking and the ability to go wherever life takes them.

Designed for optimal outcomes:

  • Integrated vacuum pump improves balance and reduces risk of falls1, provides better control over the prosthesis2, minimizes residual limb problems and skin irritation3 and reduces fluctuations in limb volume4
  • The functional ring unit effectively absorbs torsion (+/- 10°) to relieve the residual limb and enhance comfort in everyday life in combination with vertical shock absorption (up to 15 mm)
  • Dual springs and a long carbon base enable a smooth rollover and efficient energy return at varying speeds
  • The unique flexible connection of the carbon springs in the forefoot result in optimal adaption
  • Three different heel wedges to optimize gait dynamics and reduce impact forces
  • Sizes 22 – 30 cm
  • Up to 330 lbs / 150kg
  • Build height with normal footshell (size 26) 7 ¼” (185mm)

1 Samitier et al. 2014, Kahle et al. 2014, Kahle et al. 2013, Ferraro et al. 2011
2 Darter et al. 2016, Kahle et al. 2014, Kahle et al. 2013, Beil et al. 2002
3 Kahle et al. 2014, Hoskins et al. 2014, Traballesi et al. 2012, Brunelli et al. 2009
4 Kahle et al. 2014, Sanders et al. 2011, Street et al. 2006, Goswami et al. 2003, Board et al. 2001

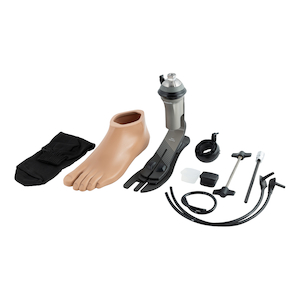

The scope of delivery for Taleo Harmony includes footshell with connection cap, the 2F50 heel wedge set (comprising three different degrees of hardness), a 2Z360 functional ring set for replacement, a 2R117=0 socket connector, a pre-compression kit and a black Spectra sock.

Specifications

Activity Level K3
Maximum Body Weight 330 lbs (150 kg)
Heel Height Normal footshell (N) 10 +/- 5mm, Slim footshell (S) 15 +/- 5 mm
~ Min. Clearance Height (Normal, Size 26 cm) 185 mm (7 1/4")
Product weight (w/o footshell) (Size 26 cm) 26.49 oz / 751 grams
Footshell Shape Normal (N), Slim (S)
Sizes 22 cm - 30 cm
Footshell Color Beige (4), Brown (15)
Side Right (R), Left (L)
Standard Warranty 3 years
Stiffness (footshell shape) - Normal activity level
22 cm 23 cm 24 cm 25 cm 26 cm 27 cm 28 cm 29 cm 30 cm
Up to 113 lbs (up to 51 kg) 1 (S) 1 (S) 1 (S/N) 1 (S/N) 1 (N)
114 to 129 lbs (52 - 58 kg) 2 (S) 2 (S) 2 (S/N) 2 (S/N) 2 (N)
130 to 149 lbs (59 - 67 kg) 3 (S) 3 (S) 3 (S/N) 3 (S/N) 3 (N) 3 (N) 3 (N)
150 to 170 lbs (68 - 77 kg) 4 (S) 4 (S) 4 (S/N) 4 (S/N) 4 (N) 4 (N) 4 (N) 4 (N) 4 (N)
171 to 195 lbs (78 - 88 kg) 5 (S) 5 (S) 5 (S/N) 5 (S/N) 5 (N) 5 (N) 5 (N) 5 (N) 5 (N)
196 to 220 lbs (89 - 100 kg) 6 (S) 6 (S/N) 6 (S/N) 6 (N) 6 (N) 6 (N) 6 (N) 6 (N)
221 to 254 lbs (101 - 115 kg) 7 (S/N) 7 (N) 7 (N) 7 (N) 7 (N) 7 (N)
255 to 287 lbs (116 - 130 kg) 8 (N) 8 (N) 8 (N) 8 (N) 8 (N)
288 to 330 lbs (131 - 150 kg) 9 (N) 9 (N) 9 (N) 9 (N)
Stiffness (footshell shape) - High activity level
22 cm 23 cm 24 cm 25 cm 26 cm 27 cm 28 cm 29 cm 30 cm
Up to 113 lbs (up to 51 kg) 2 (S) 2 (S) 2 (S/N) 2 (S/N) 2 (N)
114 to 129 lbs (52 - 58 kg) 3 (S) 3 (S) 3 (S/N) 3 (S/N) 3 (N)
130 to 149 lbs (59 - 67 kg) 4 (S) 4 (S) 4 (S/N) 4 (S/N) 4 (N) 4 (N) 4 (N)
150 to 170 lbs (68 - 77 kg) 5 (S) 5 (S) 5 (S/N) 5 (S/N) 5 (N) 5 (N) 5 (N) 5 (N) 5 (N)
171 to 195 lbs (78 - 88 kg) 6 (S) 6 (S/N) 6 (S/N) 6 (N) 6 (N) 6 (N) 6 (N) 6 (N)
196 to 220 lbs (89 - 100 kg) 7 (S/N) 7 (N) 7 (N) 7 (N) 7 (N) 7 (N)
221 to 254 lbs (101 - 115 kg) 8 (N) 8 (N) 8 (N) 8 (N) 8 (N)
255 to 287 lbs (116 - 130 kg) 9 (N) 9 (N) 9 (N) 9 (N)
288 to 330 lbs (131 - 150 kg)
