ErgoArm Electronic plus

Item #: 12K50

Log in to order
Suggested HCPCS Coding: Base Code + L6693 + L6638
Learn more about our Reimbursement Services

Need help fabricating?  Start here to access additional information and fabrication order forms, or call 800.328.4058 to get in touch with one of our Fabrication Services experts.

Overview

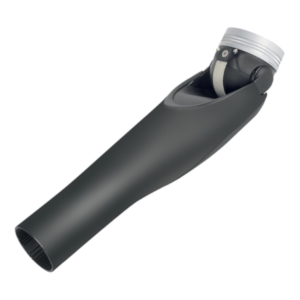

The 12K50 ErgoArm Electronic plus is a lightweight and versatile electronic locking elbow that is compatible with a myolectric hand or terminal device.

Features include:

The internal Infinite Position lock is cable-operated and can be locked, or unlocked, under load in any position. It can bear a load of up to 230N at a forearm length of 305mm.

The Slip-Stop function makes it possible to lower the forearm in a controlled manner without having to fully release and reactivate the lock. In the ErgoArm Electronic plus, this feature is electronic versus mechanical.

Automatic Forearm Balance (AFB) supports flexion by using energy stored during extension. It promotes a smoother motion when swinging the arm, making it easier to lift the arm. For improved cosmesis, the AFB finger wheel is now the same color as the forearm shell.

Easy Plug allows the electrode and battery connecting cables to be plugged into the elbow cover. Internal cables enhance overall cosmetic appearance while also increasing durability.

Electronic Lock enables the user to control the elbow’s locking and unlocking with myoelectric signals (2 electrodes: co-contraction) or by means of a switch. Eight switching modes are available which permits customization of the lock control system to the user’s personal requirements.

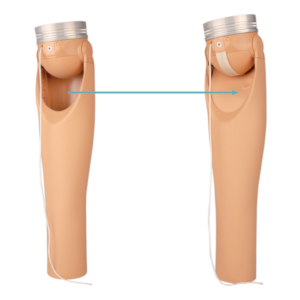

A new membrane cover in the crook of the arm protects internal components and prevents user’s clothing from potentially getting trapped, enhancing overall appearance and functionality.

Please see the ErgoArm Family Selection Guide for available sizes and corresponding color options.

Specifications

Article number Upper arm connection For hand size For lamination ring Color
12K50=45 70 mm 7 - 7 1/4 45 mm No. 4

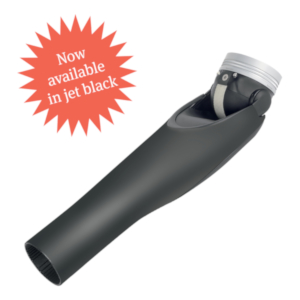

12K50=45-7 70 mm 7 - 7 1/4 45 mm Jet Black
12K50=50 70 mm 7 3/4 - 8 1/4 50 mm No. 4
12K50=50-1 70 mm 7 3/4 - 8 1/4 50 mm No. 11
12K50=50-2 70 mm 7 3/4 - 8 1/4 50 mm No. 15
12K50=50-7 70 mm 7 3/4 - 8 1/4 50 mm Jet Black
Forearm can be shortened to a length of 305 mm,
and to a circumference of approx. 250 mm
Light weight: approx. 550 - 710 g

Documents

Refine results

ErgoArm Selection Guide

Product Information: (EN)

Publish date: Aug 1, 2019

PDF Document (16509ErgoArmSelectionGuide09_2019.pdf | 1007 KB)

ErgoArm Specification Sheet

Product Information: (EN)

Publish date: Aug 1, 2019

PDF Document (ErgoArmSpecSheet09_2019.pdf | 177 KB)

Elbow Components – At a Glance Features, Improvements, Differences

Product Information: 646D626 (EN)

Publish date: Nov 1, 2014

PDF Document (646D626-EN-04-1411w.pdf | 898 KB)

MyoBock System Overview

Product Information: 646F277 (EN)

Publish date: Jan 1, 2013

PDF Document (646F277-GB-05-1301w.pdf | 1 MB)

(Practitioner) 12K41 ErgoArm, 12K42 ErgoArm plus, 12K44 ErgoArm Hybrid plus, 12K50 ErgoArm Electronic plus - Instructions for Use

Instructions for Use: 647H437 (EN/DE/FR/IT/ES/SV/NL/RU)

Publish date: Aug 1, 2019

PDF Document (647H437-INT-17-1906w.pdf | 2 MB)

(User) 12K41 ErgoArm, 12K42 ErgoArm plus, 12K44 ErgoArm Hybrid plus, 12K50 ErgoArm Electronic plus - Instructions for Use

Instructions for Use: (EN/DE/FR/IT/ES/NL/SV/RU)

Publish date: Aug 1, 2019

PDF Document (647G1475-INT-01-1907w.pdf | 1 MB)

UL Documentation Packet

Product Information: (EN)

Publish date: Feb 28, 2020

PDF Document (UL_Documentation_Packet_02280.pdf | 2 MB)

MyoBock Program Overview

Product Information: MyoBockProgramOverview (EN)

Publish date:

PDF Document (MyoBockProgramOverview.pdf | 41 KB)

Myobock-bebionic Coding Options (US only)

Product Information: (EN)

Publish date:

PDF Document (MyoBockBebionicCodeOps_01080-US.pdf | 135 KB)

Myobock System Overview

Product Information: (EN)

Publish date:

PDF Document (MYO_Poster_USA.pdf | 995 KB)
