MyoHand VariPlus Speed

Item #: 8E39=9

With lamination ring for wrist disarticulation

Added to your shopping cart

Suggested HCPCS Coding: L7007 + L6882

Learn more about our Reimbursement Services

Overview

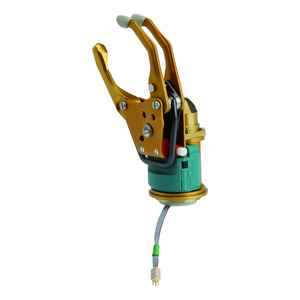

MyoHand VariPlus Speed with lamination ring wrist connection is suitable for wrist disarticulation. It combines the mechanical characteristics of the SensorHand Speed and the control options of the DMC VariPlus System Electric Greifer. Thanks to the high gripping strength (approx. 100 N) and speed (up to 300 mm/s), objects can be gripped quickly and precisely.

With the 757T13 MyoSelect, a total of 6 different programs can be selected and adapted according to patient indications. This permits optimum adaptation to the needs and abilities of the prosthesis wearer.

The following control modes can be selected with the 757T13 MyoSelect:

DMC plus
AutoControl LowInput
VarioControl
VarioDual
DigitalControl
DoubleChannel Control

The MyoHand VariPlus Speed can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack.
With central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.

MyoSelect Required for Programming

Specifications

Article number	Side	Size	Opening width	Proportional gripping force	Proportional speed	Weight with inner hand	For
8E39=9-L7 1/4	Left	7 1/4	100 mm	0 - 100 N	15 - 300 mm/sec	460 g	Women, Adolescents
8E39=9-L7 3/4	Left	7 3/4	100 mm	0 - 100 N	15 - 300 mm/sec	460 g	Men
8E39=9-L8 1/4	Left	8 1/4	100 mm	0 - 100 N	15 - 300 mm/sec	460 g	Men
8E39=9-R7 1/4	Right	7 1/4	100 mm	0 - 100 N	15 - 300 mm/sec	460 g	Women, Adolescents
8E39=9-R7 3/4	Right	7 3/4	100 mm	0 - 100 N	15 - 300 mm/sec	460 g	Men
8E39=9-R8 1/4	Right	8 1/4	100 mm	0 - 100 N	15 - 300 mm/sec	460 g	Men

Myo Glove Sizing for Hands
Hand Size	For	Standard Glove Article Number	Skin Natural Glove Article Number
5	Children 1-3 yrs old	8S20=136x41 (L/R) color	8S20N=136x41 (L/R) color
5 1/2	Children 3-6 yrs old	8S20=147x45 (L/R) color	8S20N=147x45 (L/R) color
6	Children 5-10 yrs old	8S20=162x56 (L/R) color	8S20N=162x56 (L/R) color
6 1/2	Children 8-13 yrs old	8S20=177x64 (L/R) color	8S20N=177x64 (L/R) color
7	Women, Adolescents	8S13=7 (L/R) color	8S13=7 (L/R) color
7 1/4	Men, Adolescents	8S11=190x76 (L/R) color	8S11N=190x76 (L/R) color
7 1/4	Women	8S12=190x78 (L/R) color	8S12N=190x78 (L/R) color
7 3/4	Men	8S11=210x78 (L/R) color	8S11N=210x78 (L/R) color
8 1/4	Men	8S11=225x80 (L/R) color	8S11N=225x80 (L/R) color
