AxonSkin for Michelangelo Hand: Donning and Doffing Process

Michelangelo Hand

Item #: 8E500=R-M

Added to your shopping cart

Suggested HCPCS Coding: L6880 + L6621 + L6629 + L6890 (+ add L7259 if Active Rotation 9S501 is used)

PDAC Verified
Find Reimbursement Documents here.

Learn more about our Reimbursement Services

Overview

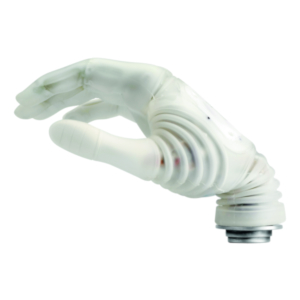

The Michelangelo Hand is an electronic hand with a naturally shaped, integrated flexion wrist joint, active thumb, and articulating fingers. It is suitable for transcarpal, transradial, and transhumeral fittings.

Part of the unique and streamlined Axon-Bus system, Michelangelo is lightweight, powerful, and fast. Restoring numerous functions of the natural hand, Michelangelo offers a sophisticated, intelligently designed upper limb prosthesis.

Scope of delivery:

Michelangelo Hand (8E500=*) and/or AxonHook (8E600=*)
Glove selection: Women's: Natural 8S502=*, Men's: Natural 8S501=*, or Silicone 8S511=*,Unisex: Visual 8S500=* (Translucent or Black)
Active rotation (9S503) or Passive rotation (9S501)
Battery: Capacity 1500 mA (757B500) or 1150 mA (757B501)
AxonCharge Integral 757L500
AxonMaster 13E500
Lamination ring 10S500=M
2 Year Manufacturer's Warranty

Components ordered separately:

Electrodes / cables
Tube valve
Pull in tube
60X5 Bionic Link PC
AxonSoft (free with course)
SP-8K500=3 Third year extended warranty

Specifications

	Michelangelo	Michelangelo Transcarpal
Reference number	8E500	8E550
Article number (left side)	8E500=L-M	8E550=L-M
Article number (right side)	8E500=R-M	8E550=R-M
Size	M (7 3/4)	M (7 3/4)
Weight	510 g	460 g
Length: Middle finger to proximal hand	180 mm	na
Length: Middle finger to proximal including passive wrist	225 mm	na
Length: Middle finger to proximal including active wrist	232 mm	na
Length: Middle finger to end of lamination ring	na	160 mm
Operating voltage	11.1 V	11.1 V
Operating temperature	-10 to +60 degrees C	-10 to +60 degrees C
Storage temperature	(-)20 - (+) 40 degrees C	(-)20 - (+) 40 degrees C
Relative humidity	max. 80% non-condensing	max. 80% non-condensing
Opening width	120 mm	120 mm
Gripping force in Opposition Mode	70 N	70 N
Gripping force in Lateral Mode	60 N	60 N
Gripping force in Neutral Mode	15 N	15 N
Average speed	325 mm/sec	325 mm/sec
for	Women, men	Women, men
