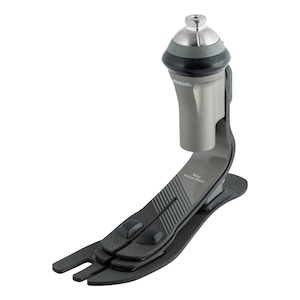

Taleo Vertical Shock
Item #: 1C51
Suggested HCPCS Coding: L5987 + L5986
PDAC Verified
Find Reimbursement Documents here.
Learn more about our Reimbursement Services
PDAC Verified
Find Reimbursement Documents here.
Learn more about our Reimbursement Services
Overview
Taleo Vertical Shock was designed for active individuals (K3) who navigate varied indoor and outdoor environments and place a high value on effortless walking and the ability to go wherever life takes them.
Designed for optimal outcomes:
- The functional ring unit effectively absorbs torsion (+/- 10°) to relieve the residual limb and enhance comfort in everyday life in combination with vertical shock absorption (up to 15 mm)
- Dual springs and a long carbon base enable a smooth rollover and efficient energy return at varying speeds
- The unique flexible connection of the carbon springs in the forefoot result in optimal adaption
- Three different heel wedges to optimize gait dynamics and reduce impact forces
- Sizes 22 – 30 cm
- Up to 330 lbs / 150kg
- Build height with normal footshell (size 26) 7 ¼” (185mm)

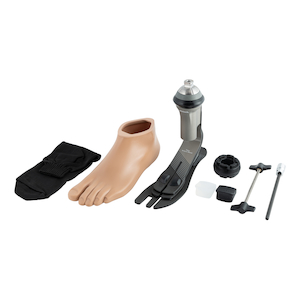

The scope of delivery for Taleo Vertical Shock includes the footshell with connection cap, the 2F50 heel wedge set (comprising three different degrees of hardness), a 2Z362 functional ring set for replacement, a pre-compression kit and a black Spectra sock.
Sometimes referred to as Taleo VS.
Specifications
| Activity Level | K3 |
|---|---|
| Maximum Body Weight | 330 lbs (150 kg) |
| Heel Height | Normal footshell (N) 10 +/- 5mm, Slim footshell (S) 15 +/- 5 mm |
| ~ Min. Clearance Height (Normal, Size 26 cm) | 185 mm (7 1/4") |
| Product weight (w/o footshell) (Size 26 cm) | 26.49 oz / 751 grams |
| Product weight (w/ footshell) (Size 26 cm) | 34.5 oz / 980 g |
| Footshell Shape | Normal (N), Slim (S) |
| Sizes | 22 cm - 30 cm |
| Footshell Color | Beige (4), Brown (15) |
| Side | Right (R), Left (L) |
| Standard Warranty | 3 years |
| 22 cm | 23 cm | 24 cm | 25 cm | 26 cm | 27 cm | 28 cm | 29 cm | 30 cm | |
| Up to 113 lbs (up to 51 kg) | 1 (S) | 1 (S) | 1 (S/N) | 1 (S/N) | 1 (N) | ||||
| 114 to 129 lbs (52 - 58 kg) | 2 (S) | 2 (S) | 2 (S/N) | 2 (S/N) | 2 (N) | ||||
| 130 to 149 lbs (59 - 67 kg) | 3 (S) | 3 (S) | 3 (S/N) | 3 (S/N) | 3 (N) | 3 (N) | 3 (N) | ||
| 150 to 170 lbs (68 - 77 kg) | 4 (S) | 4 (S) | 4 (S/N) | 4 (S/N) | 4 (N) | 4 (N) | 4 (N) | 4 (N) | 4 (N) |
| 171 to 195 lbs (78 - 88 kg) | 5 (S) | 5 (S) | 5 (S/N) | 5 (S/N) | 5 (N) | 5 (N) | 5 (N) | 5 (N) | 5 (N) |
| 196 to 220 lbs (89 - 100 kg) | 6 (S) | 6 (S/N) | 6 (S/N) | 6 (N) | 6 (N) | 6 (N) | 6 (N) | 6 (N) | |
| 221 to 254 lbs (101 - 115 kg) | 7 (S/N) | 7 (N) | 7 (N) | 7 (N) | 7 (N) | 7 (N) | |||
| 255 to 287 lbs (116 - 130 kg) | 8 (N) | 8 (N) | 8 (N) | 8 (N) | 8 (N) | ||||
| 288 to 330 lbs (131 - 150 kg) | 9 (N) | 9 (N) | 9 (N) | 9 (N) |
| 22 cm | 23 cm | 24 cm | 25 cm | 26 cm | 27 cm | 28 cm | 29 cm | 30 cm | |
| Up to 113 lbs (up to 51 kg) | 2 (S) | 2 (S) | 2 (S/N) | 2 (S/N) | 2 (N) | ||||
| 114 to 129 lbs (52 - 58 kg) | 3 (S) | 3 (S) | 3 (S/N) | 3 (S/N) | 3 (N) | ||||
| 130 to 149 lbs (59 - 67 kg) | 4 (S) | 4 (S) | 4 (S/N) | 4 (S/N) | 4 (N) | 4 (N) | 4 (N) | ||
| 150 to 170 lbs (68 - 77 kg) | 5 (S) | 5 (S) | 5 (S/N) | 5 (S/N) | 5 (N) | 5 (N) | 5 (N) | 5 (N) | 5 (N) |
| 171 to 195 lbs (78 - 88 kg) | 6 (S) | 6 (S/N) | 6 (S/N) | 6 (N) | 6 (N) | 6 (N) | 6 (N) | 6 (N) | |
| 196 to 220 lbs (89 - 100 kg) | 7 (S/N) | 7 (N) | 7 (N) | 7 (N) | 7 (N) | 7 (N) | |||
| 221 to 254 lbs (101 - 115 kg) | 8 (N) | 8 (N) | 8 (N) | 8 (N) | 8 (N) | ||||
| 255 to 287 lbs (116 - 130 kg) | 9 (N) | 9 (N) | 9 (N) | 9 (N) | |||||
| 288 to 330 lbs (131 - 150 kg) |
Spare parts
Documents
Instructions for Use - 1C51 Taleo VS, 1C52 Taleo Harmony
Instructions for Use
PDF Document | Published: Jul 31, 2021
