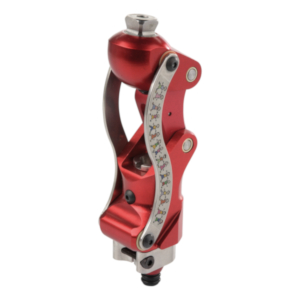

Polycntr. Knee Joint, Children
Item #: 3R66Overview
A rotation unit integrated in the lower joint section permits rotation of the prosthetic foot with automatic return upon load relief. Combined with the large flexion angle of approx. 165°, this enables a comfortable 'kneeling position' as well as crouching with the foot rotated to the outside.
- Individually adjustable knee safety thanks to adjustable stop
- Individually adjustable extension assist mechanism to control the swing phase
- Not suitable for hip disarticulate fittings
Specifications
| Material | Aluminum |
|---|---|
| Maximum Body Weight | 77 lbs (35 kg) |
| Proximal Connection | Pyramid Adapter |
| Distal Connection | Tube Clamp (22 mm diameter) |
| Maximum Knee Flexion Angle | 175 degrees |
| Knee Center to Proximal Connection | 17 mm |
| Product Weight | 310 g |
| Version | Polycentric |
| Build Height | 118 mm |
| Distal Build Height | 110 mm |
| Proximal Build Height | 8 mm |
Accessories
Spare parts
Documents
3R66 Pediatric Polycentric Knee Joint - Instructions for Use
Instructions for Use
PDF Document | Published: Dec 16, 2020
LLP Prosthetist Documentation
Reimbursement: Documentation Guide
Reimbursement
PDF Document | Published: Apr 17, 2023
