Transcarpal Hand DMC plus

Item #: 8E44=6

With lamination plate for wrist disarticulation to transcarpal levels

Added to your shopping cart

Suggested HCPCS Coding: L7007 + L6882

Learn more about our Reimbursement Services

Overview

•    Minimal clearance required
•    Variable grip speed ranges from 15-130 mm/sec
•    Cable Loops in lieu of lamination ring provide more flexibility in fabrication
•    30% lighter and 30% shorter than a standard 8E38 hand for longer amputations
•    No Wrist rotation; Patient must be able to actively pronate and supinate the hand

Utilizing cable lamination anchors to maintain a minimum build height, the Transcarpal Hand DMC plus provides a compact myoelectric option for fitting residual limb lengths from wrist disarticulation to transcarpal levels.

The Transcarpal Hand DMC (Dynamic Mode Control) plus provides proportional control of grip speed and grip force in relation to the strength of the muscle signal.

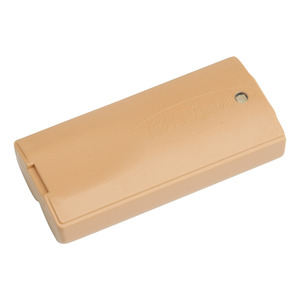

The Transcarpal-Hand DMC plus can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack. It features a centrally guided flat cable, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.

Specifications

Article number	Side	Size	Operating voltage	Opening width	Proportional gripping force	Proportional speed	Weight with inner hand	For
8E44=6-L7 1/4	Left	7 1/4	6/7.2 V	100 mm	0 - 90 N	15 - 130 mm/sec	~308 g	Women, Adolescents
8E44=6-L7 3/4	Left	7 3/4	6/7.2 V	100 mm	0 - 90 N	15 - 130 mm/sec	~308 g	Men
8E44=6-L8 1/4	Left	8 1/4	6/7.2 V	100 mm	0 - 90 N	15 - 130 mm/sec	~308 g	Men
8E44=6-R7 1/4	Right	7 1/4	6/7.2 V	100 mm	0 - 90 N	15 - 130 mm/sec	~308 g	Women, Adolescents
8E44=6-R7 3/4	Right	7 3/4	6/7.2 V	100 mm	0 - 90 N	15 - 130 mm/sec	~308 g	Men
8E44=6-R8 1/4	Right	8 1/4	6/7.2 V	100 mm	0 - 90 N	15 - 130 mm/sec	~308 g	Men

Myo Glove Sizing for Hands
Hand Size	For	Standard Glove Article Number	Skin Natural Glove Article Number
5	Children 1-3 yrs old	8S20=136x41 (L/R) color	8S20N=136x41 (L/R) color
5 1/2	Children 3-6 yrs old	8S20=147x45 (L/R) color	8S20N=147x45 (L/R) color
6	Children 5-10 yrs old	8S20=162x56 (L/R) color	8S20N=162x56 (L/R) color
6 1/2	Children 8-13 yrs old	8S20=177x64 (L/R) color	8S20N=177x64 (L/R) color
7	Women, Adolescents	8S13=7 (L/R) color	8S13=7 (L/R) color
7 1/4	Men, Adolescents	8S11=190x76 (L/R) color	8S11N=190x76 (L/R) color
7 1/4	Women	8S12=190x78 (L/R) color	8S12N=190x78 (L/R) color
7 3/4	Men	8S11=210x78 (L/R) color	8S11N=210x78 (L/R) color
8 1/4	Men	8S11=225x80 (L/R) color	8S11N=225x80 (L/R) color
