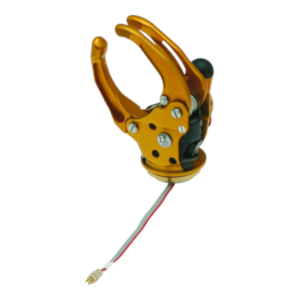

System Electric Hand Digital Twin
Item #: 8E39=7Overview
Lamination ring suitable for wrist disarticulation. Passive wrist rotation with friction.
The Digital Twin control features a digital and dual channel control mode. The desired control mode is selected with the integrated 13E185 function plug.
The System Electric Hand Digital Twin can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack. It features a centrally guided flat cable with automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. With potentiometer for adjusting the switching threshold (double-channel control). An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.
Specifications
Hand Size | For | Standard Glove Article Number |
Skin Natural Glove Article Number |
---|---|---|---|
5 | Children 1-3 yrs old | 8S20=136x41 (L/R) color | 8S20N=136x41 (L/R) color |
5 1/2 | Children 3-6 yrs old | 8S20=147x45 (L/R) color | 8S20N=147x45 (L/R) color |
6 | Children 5-10 yrs old | 8S20=162x56 (L/R) color | 8S20N=162x56 (L/R) color |
6 1/2 | Children 8-13 yrs old | 8S20=177x64 (L/R) color | 8S20N=177x64 (L/R) color |
7 | Women, Adolescents | 8S13=7 (L/R) color | 8S13=7 (L/R) color |
7 1/4 | Men, Adolescents | 8S11=190x76 (L/R) color | 8S11N=190x76 (L/R) color |
7 1/4 | Women | 8S12=190x78 (L/R) color | 8S12N=190x78 (L/R) color |
7 3/4 | Men | 8S11=210x78 (L/R) color | 8S11N=210x78 (L/R) color |
8 1/4 | Men | 8S11=225x80 (L/R) color | 8S11N=225x80 (L/R) color |
