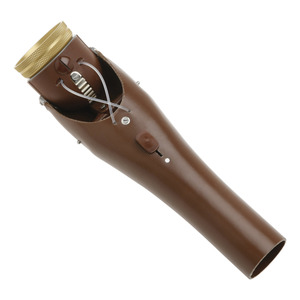

Elbow Set-Up
Item #: 12K20=50Overview
With manual elbow lock (13 locking positions in approximately 8° increments) and upper arm rotation joint (sickle joint). Plastic forearm shell, dark brown, length approx. 260 mm, circumference 245 mm. plastic elbow ball, dark brown.Specifications
| Article number | Upper arm connection | For hand size | For lamination ring | |
|---|---|---|---|---|
| 12K20=45 | 67 mm | 6 3/4 - 7 1/4 | 45 mm | |
| 12K20=50 | 67 mm | 7 3/4 - 8 | 50 mm |
Spare parts
Documents
12K5, 12K19, 12K20 Elbow Set-Ups - Instructions for Use
Instructions for Use
PDF Document | Published: Mar 9, 2021
