Overview

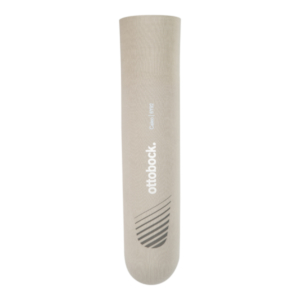

A cylindrical shaped, textile-covered cushion liner made from a thermoformable copolymer, ideal for use with a full contact socket:

For transtibial amputees with low to moderate activity level
Ideal for use in combination with a valve and sealing sleeve
Also available with distal connector (6Y90=*) for use with a locking/lanyard system
Textile coating has no exterior seams that could separate
Made of moldable thermoplastic material (thermoplastic elastomer, or TPE) for use with atypical residual limb shapes
10 mm distal cushion pad and wall thickness tapering from 5 mm to 3 mm proximal for protection against socket forces
Copolymer contains medical grade mineral oil to moisturize dry skin and an antioxidant that traps free radicals and hydroxyl groups

Sizing:
Measure the residual limb circumference 4 cm above the distal end of the residual limb and select the liner size which corresponds to this measurement, or the next smallest size.

Serial number location: Serial number is printed on the outside of the liner on the textile at the distal end.

Try our Interactive Liner Selection Tool here: https://academy.ottobockus.com/toolbox/liners/liners

Specifications

Article Number	6Y92 = size
Amputation Level	Transtibial (TT)
Liner Material	Copolymer (TPE)
Distal Connection	Without
Textile Cover	With
Socket Design	Total surface weight bearing
Anti-Pistoning Matrix	Without
Antibacterial	Without
Sizes (mm)	200, 250, 280, 320, 360

Sizing Instructions	Measure the residual limb circumference 4 cm above the distal end of the residual limb and select the liner size which corresponds to this measurement, or the next smallest size.
