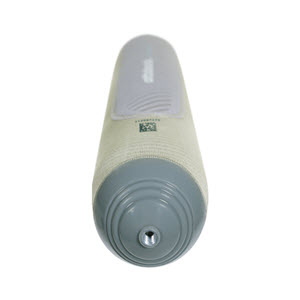

Caleo 3D

Item #: 6Y95
TPE (Thermoplastic Elastomer) liner with firmer gel for more active users.
Log in to order
Suggested HCPCS Coding: Cushion Liner: L5679 Locking Liner: L5673

Learn more about our Reimbursement Services

Overview

6Y95 Caleo3D copolymer (TPE) liner is designed to be comfortable and durable for below-knee amputees with more active lifestyles.

Benefits at a glance:

  • The 3D design features a thicker wall (6 mm) in the front for better protection, and a thinner wall (3 mm) at the rear for more flexibility
  • Medical white oil for nurturing dry and sensitive residual limbs
  • New, improved gel formula combines durability and comfort, and can also be thermoformed
  • Knee flexion zone for easy knee flexibility with simultaneous relief of the patella
  • Monoelastic fabric prevents pistoning and eliminates the need for a distal matrix
  • Soft more flexible 3D cap for locking liners and no cap for cushion liners.

Try our Interactive Liner Selection Tool here: https://academy.ottobockus.com/toolbox/liners/liners

Specifications

Article Number 6Y95=L6 (size) 6Y95=C6 (size)
Amputation Level Transtibial (TT) Transtibial (TT)
Distal Connection With Without
Textile Cover With With
Wall Thickness 6 mm (front), 3 mm (back) 6 mm (front), 3 mm (back)
Socket Design Specific or total surface weight-bearing socket Specific or total surface weight-bearing socket
Matrix Integrated in textile Integrated in textile
Example for Ordering 6Y95=L6-M 6Y95=C6-M
Sizes
(circumference)
4 cm from distal (min) 4 cm from distal (max) 30 from distal (min) 30 cm from distal (max)
S 150 260 200 330
M 180 310 230 410
MP 200 310 330 560
L 230 350 360 560
LP 280 430 400 630
XL 330 500 430 690

Documents

Refine results

Liners - Instructions for Use

Instructions for Use

PDF Document | Published: Mar 2, 2024

Caleo 3D 6Y95 Specification Sheet

Product Information

PDF Document | Published: Jan 1, 2019
