Modular Hip Joint-Child
Item #: 7E8Overview
Ideal for children, the lightweight 7E8 modular hip joint is easily incorporated into a modular prosthesis.

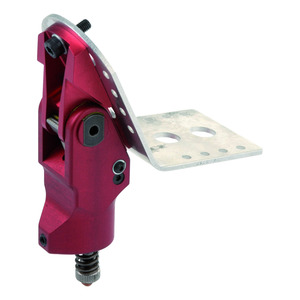

The 7E8 prosthetic hip joint is easily incorporated into a modular prosthesis. The aluminum hip joint has a proximal socket attachment plate and a distal tube clamp. It is approved for a maximum body weight of 99 lbs (45 kg).
Specifications
| Maximum Body Weight | 99 lbs (45 kg) |
|---|---|
| Material | Aluminum |
| Distal Connection | Tube Clamp (22 mm diameter) |
| Proximal Connection | Lamination Plate |
| System Height | 19 mm |
| Product Weight | 215 g |
| Minimum Build Height | 60 mm |
Accessories

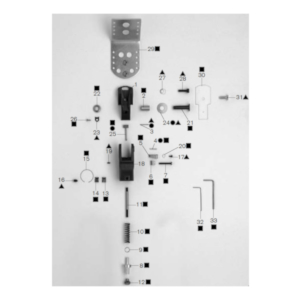

Spare parts
Documents
7E8 Pediatric Modular Hip Joint - Instructions for Use
Instructions for Use
PDF Document | Published: Nov 1, 2021
