Prosthetic Light Duty Stainless Steel

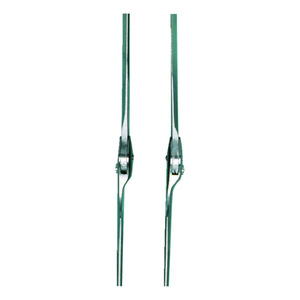

Item #: 7U32=RLight duty stainless steel knee joint bar
Overview
Stainless steel joints with ball bearing, joint center placed to the posterior, concave half-round bar profile, forged upper and lower joint bars and the head of the inner joint bar is offset to the outside, the head of the outer joint bar to the inside.Specifications
| Side | Right |
|---|---|
| Milled Head | 24x4 mm |
| Upper Length from Joint Center | 340 mm |
| Lower Length from Joint Center | 150 mm |
| Bar Width | 20 mm (0.787 in) |
| Bar Thickness | 2.3 mm |
| Material | Stainless Steel |
| Quantity | Pair |
Accessories
Spare parts
Documents
Processing instructions for Ottobock system bars and leg bars – stainless steel –
Product Information
PDF Document | Published: Jul 1, 2013
Knee joint bars - Instructions for use
7G3, 7U2, 7U10, 7U15, 7U25, 7U27, 7U30, 7U32, 7U33, 7U42, 7U43, 7U46
Instructions for Use
