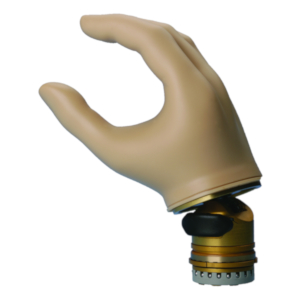

MyoHand VariPlus Speed w/ Flex

Item #: 8E41=9-R7 3/4-F

Right, Size 7 3/4, Quick disconnect with wrist flexion

Added to your shopping cart

Suggested HCPCS Coding:
L7007 + L6882 + L6621
(L6629 may be added to the prosthesis for a lamination collar with coupling used for quick disconnect for terminal device interchange, cleaning, servicing, etc.)

Overview

MyoHand VariPlus Speed with threaded stud wrist connection is suitable for all amputation levels except wrist disarticulation. It combines the mechanical characteristics of the SensorHand Speed and the control options of the DMC VariPlus System Electric Greifer. Thanks to the high gripping strength (approx. 100 N) and speed (up to 300 mm/s), objects can be gripped quickly and precisely.

With the 757T13 MyoSelect, a total of 6 different programs can be selected and adapted according to patient indications. This permits optimum adaptation to the needs and abilities of the prosthesis wearer.

The following control modes can be selected with the 757T13 MyoSelect:

DMC plus
AutoControl LowInput
VarioControl
VarioDual
DigitalControl
DoubleChannel Control

The MyoHand VariPlus Speed can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack

With central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure

Specifications

Myo Glove Sizing for Hands
Hand Size	For	Standard Glove Article Number	Skin Natural Glove Article Number
5	Children 1-3 yrs old	8S20=136x41 (L/R) color	8S20N=136x41 (L/R) color
5 1/2	Children 3-6 yrs old	8S20=147x45 (L/R) color	8S20N=147x45 (L/R) color
6	Children 5-10 yrs old	8S20=162x56 (L/R) color	8S20N=162x56 (L/R) color
6 1/2	Children 8-13 yrs old	8S20=177x64 (L/R) color	8S20N=177x64 (L/R) color
7	Women, Adolescents	8S13=7 (L/R) color	8S13=7 (L/R) color
7 1/4	Men, Adolescents	8S11=190x76 (L/R) color	8S11N=190x76 (L/R) color
7 1/4	Women	8S12=190x78 (L/R) color	8S12N=190x78 (L/R) color
7 3/4	Men	8S11=210x78 (L/R) color	8S11N=210x78 (L/R) color
8 1/4	Men	8S11=225x80 (L/R) color	8S11N=225x80 (L/R) color
