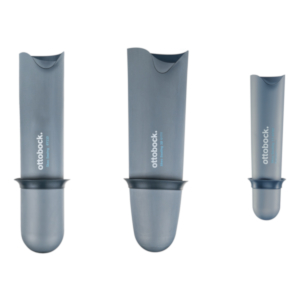

Skeo Sealing TT Liner
Item #: 6Y112This latest addition to the Skeo Sealing Family liners offers transtibial patients a high level of comfort and piece-of-mind. The sealing ring provides a consistent seal against the inner socket wall for secure suspension. Its silky-smooth surface with no textile cover simplifies cleaning as well as the donning and doffing process.
Overview
Introducing the latest addition to the Skeo Sealing liner family: 6Y112 Skeo Sealing TT Liner - offering transtibial amputees a high level of comfort and reliability.
The sealing ring reliably retains the vacuum in the socket. Its silky-smooth surface with no textile cover simplifies the cleaning as well as the donning and doffing process.
Benefits at a glance:
- One sealing height provides a higher vacuum area for higher adhesion as well as security and peace-of-mind for the patient
- Integrated sealing ring promotes durability throughout the lifetime of the liner
- The inside of the liner is textured for a pleasant feeling on the skin

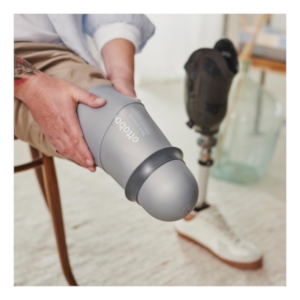

- Silky-smooth outer coating for easier donning and doffing
- Orientation aid on the inside of the liner for an optimal liner position on the residual limb
- An integrated matrix for reduced elongation and good tissue management
- It's recommended the Skeo Sealing TT be combined with the NEW 21Y2 QuickValve or the Harmony system plus 21Y2 QuickValve.

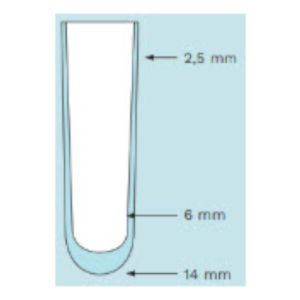

- Thin wall thickness in the proximal area (2.5 mm) so the liner fits well against the skin and does not fold down.
Waterproof: Protected against fresh, salt and chlorinated water
Specifications
Article number | Circumference | Ring height |
---|---|---|
6Y112=160X80 | 160 mm | 80 mm |
6Y112=180X80 | 180 mm | 80 mm |
6Y112=200X80 | 200 mm | 80 mm |
6Y112=210X80 | 210 mm | 80 mm |
6Y112=220X80 | 220 mm | 80 mm |
6Y112=235X80 | 235 mm | 80 mm |
6Y112=250X80 | 250 mm | 80 mm |
6Y112=265X80 | 265 mm | 80 mm |
6Y112=280X80 | 280 mm | 80 mm |
6Y112=300X80 | 300 mm | 80 mm |
6Y112=320X80 | 320 mm | 80 mm |
6Y112=340X90 | 340 mm | 90 mm |
6Y112=360X90 | 360 mm | 90 mm |
6Y112=380X90 | 380 mm | 90 mm |
6Y112=400X90 | 400 mm | 90 mm |
Accessories
Documents
6Y112 Skeo Sealing TT Liner - Product Brief
Product Information
PDF Document | Published: Aug 12, 2024
Skeo Sealing Liner - Notes for socket fabrication
Product Information
PDF Document | Published: Aug 12, 2024
