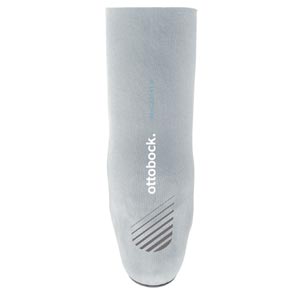

Skeo 3D (TT/BK)

Item #: 6Y78
Locking liner with built in knee flexion and added thickness over bony prominences, with Skinguard antibacterial for reduced odors.
Log in to order
Suggested HCPCS Coding: L5673

Learn more about our Reimbursement Services

Overview

Anatomically shaped silicone liner with varying wall thickness for comfort and easy flexion:

  • Skinguard antibacterial for reduced odors
  • Geometry comes as close as possible to the residual limb’s natural shape
  • High wall thicknesses protect sensitive areas against pressure and impacts
  • Thin material regions improve flexibility
  • Preflexed so the knee bends easily
  • Textured inner surface improves adhesion and channels moisture away from skin
  • Distal stabilizing matrix eliminates longitudinal stretching and pistoning
  • Proprietary textile cover makes it easy to put on and take off
  • Available in three residual limb lengths and nine residual limb circumferences
  • For below-knee amputations
  • Recommended for use in combination with a shuttle lock system

Two measurements are needed to determine the correct size of the liner:

  • Measure the length from MPT to the end of the residual limb to determine residual limb length.
  • Measure the circumference 40 mm (1 1/2 in) above end of the residual limb to determine residual limb circumference.

Serial number location: Serial number is etched into the cap at the distal end of the liner. Talc powder rubbed on etching may help to read.

Try our Interactive Liner Selection Tool here: https://academy.ottobockus.com/toolbox/liners/liners

Specifications

Type of Liners TransTibial (TT)
Liner Material Silicone
Antibacterial Yes - Skinguard
Suspension Method Locking/Lanyard
Covering Full Textile
Shape Preflexed
Anti-Pistoning Matrix Yes
Sizes 6Y78=180X125
6Y78=200X125
6Y78=220X125
6Y78=220X175
6Y78=235X125
6Y78=235X175
6Y78=250X125
6Y78=250X175
6Y78=265X125
6Y78=265X175
6Y78=265X75
6Y78=280X125
6Y78=280X175
6Y78=300X175
6Y78=320X175
