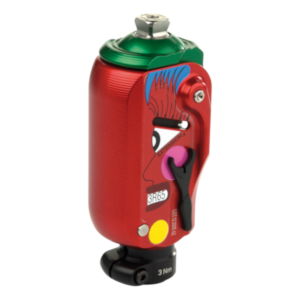

Single Axis Knee Joint, Children

Item #: 3R65

Replaced by 3R67

Suggested HCPCS Coding: L5826
Restrictions to Coding and/or Coverage may apply
Learn more about our Reimbursement Services

Overview

A miniature hydraulic system with terminal damping makes dynamic adaptation to changing walking speeds possible. Extension and flexion damping are individually adjustable to the mobility of young users.

Specifications

Maximum Body Weight 99 lbs (45 kg)
Material Aluminum
Proximal Connection Pyramid Adapter
Distal Connection Tube Clamp (22 mm diameter)
Maximum Knee Flexion Angle 145 degrees
Knee Center to Proxiaml Connection 22 mm
Product Weight 315 g
Version Monocentric

Documents

Refine results

3R65 Pediatric Modular Single Axis Knee Joint with Hydraulic Swing Phase Control - Instructions for Use

Instructions for Use: 647H180 (EN/DE/FR/IT/ES/NL/SV/EL)

Publish date: Oct 1, 2010

PDF Document (647H180-INT-02-1001w.pdf | 772 KB)

3R65 Single Axis Knee Joint - Instructions for Use

Instructions for Use: 647H538 (EN/DE/FR/IT/ES/NL/SV/EL)

Publish date: Dec 4, 2015

PDF Document (647H538-INT-04-1512w.pdf | 437 KB)

LL Prosthetic Documentation Packet

Reimbursement: (EN)

Publish date: Jul 20, 2020

PDF Document (LLP_DocumentationPkt_072020.pdf | 1 MB)

3R65 Pediatric Modular Single Axis Knee Joint with Hydraulic Swing Phase Control - Instructions for Use

Instructions for Use: 647H180 (EN/DE/FR/IT/ES/NL/SV/EL)

Publish date: Oct 1, 2010

PDF Document (647H180-INT-02-1001w.pdf | 772 KB)

3R65 Single Axis Knee Joint - Instructions for Use

Instructions for Use: 647H538 (EN/DE/FR/IT/ES/NL/SV/EL)

Publish date: Dec 4, 2015

PDF Document (647H538-INT-04-1512w.pdf | 437 KB)
