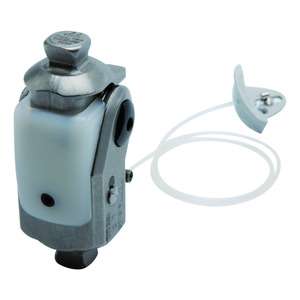

Single Axis Knee Joint, Lock, Titan.
Item #: 3R33Overview
The upper and lower joint sections are connected through the knee axis by bushings and ball bearings. The adjustable lock secures the joint in extension. The lock is released using the lock cable. Locking occurs automatically at full extension with assistance from the extension assist spring.Specifications
Activity Level | K1 |
---|---|
Maximum Body Weight | 275 lbs (125 kg) |
Material | Titanium |
Proximal Connection | Pyramid Adapter |
Distal Connection | Pyramid Adapter |
Maximum Knee Flexion Angle | 120 degrees |
Knee Center to Proximal Connection | 39 mm |
Product Weight | 530 g |
Build Height | 79 mm |
Distal Build Height | 55 mm |
Proximal Build Height | 24 mm |
