Taleo Adapt

Item #: 1C59

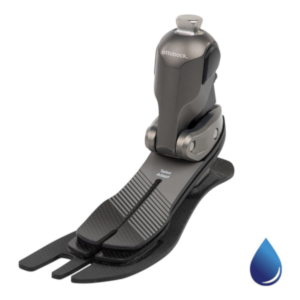

Carbon Fiber Energy Storing and Returning Hydraulic ROM foot

Log in to order

Suggested HCPCS Coding: L5981 + L5968 (PDAC Approved in 2023)
Restrictions to Coding and/or Coverage may apply


Learn more about our Reimbursement Services

Overview

The Taleo Adapt was designed for active users who navigate varied indoor and outdoor environments and place a high value on effortless walking wherever life takes them.

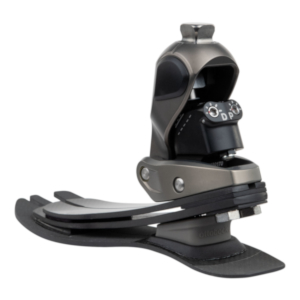

Its hydraulic ankle unit allows the foot to adapt to uneven terrain and slopes for greater flexibility and comfort.

Designed for optimal outcomes:

  • Hydraulic ankle allows up to 2 degrees dorsiflexion and 10 degrees plantarflexion for a total range of 12 degrees.
  • The dorsiflexion and plantarflexion adjustment valves allow resistance to be optimized to the individual user needs.
  • Dorsiflexed position during swing phase for improved toe clearance.
  • Three different angle indicator lines show the location of the hydraulic ankle joint (PF, neutral position, DF). These provide the technician with an orientation aid and enable a functionally correct alignment.
  • Three different heel wedge options can be used to customize the impact stress at heel strike and the gait dynamics.
  • Openings in the sole of the footshell prevent water from collecting in the prosthesis.
  • Waterproof, protected against fresh, salt and chlorinated water

Specifications

Activity Level K3,K4
Max. Body Weight 286 lbs (130 kg)
Side left (L), right (R)
Sizes 22 - 30 cm
Weight without footshell* 22 oz (622 g)
Weight with footshell* 32 oz (889 g)
Footshell color beige (4), light brown (15)
Build height* 5 1/4" (134 mm)
* Reference size is 26 cm.
Selection of the spring stiffness
Body weight Normal activity level High activity level
Up to 112 lbs (up to 51 kg) 1 2
113 to 127 lbs (52 - 58 kg) 2 3
128 to 147 lbs (59 - 67 kg) 3 4
148 to 169 lbs (68 - 77 kg) 4 5
170 to 194 lbs (78 - 88 kg) 5 6
195 to 220 lbs (89 - 100 kg) 6 7
221 to 253 lbs (101 - 115 kg) 7 8
254 to 286 lbs (116 - 130 kg) 8 8

Documents

Refine results

1C59 Instructions for Use

Instructions for Use

PDF Document | Published: Jun 13, 2024

1C59 Product Brief

Product Information

PDF Document | Published: Jul 10, 2024
