Dynamic Foot with Toes

Item #: 1D10

Log in to order
Suggested HCPCS Coding: L5972
Restrictions to Coding and/or Coverage may apply

Learn more about our Reimbursement Services

Get additional 10% off Configure Solution

Overview

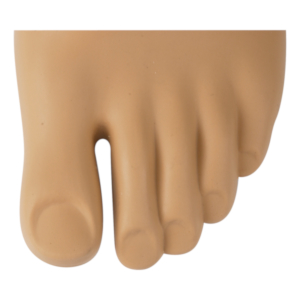

The 1D10 Dynamic Foot features natural shape with smooth surface, shaped toes and sandal toe. The functional characteristic are achieved through the proven combination of a contoured core and functional foam. This results in a comfortable heel strike and a smoother rollover than with the SACH foot. The sophisticated foam technology offers improved dynamic characteristics of the forefoot.

The 1D10 is available with or without with an assembled titanium modular adapter.

Specifications

Activity Level K1, K2
Maximum Body Weight 330 lbs (150 kg)
Footshell Color Beige (4), Brown (15)
Footshell Shape Normal (N)
Side Right (R), Left (L)
Sizes 22 cm - 30 cm
Product weight (w/o footshell) 385 g - 780 g
~ Min. Clearance Height (w/o adapter) 90 mm (3 1/2")
Heel Height 10 +/- 5 mm
Without Adapter
Size Max. Body Weight Heel Height Minimum Clearance
Height (approx.) (without Adapter)
Product Weight
(w/o Adapter), approx.
Color Options (Footshell) Article Number (Left) Article Number (Right)
22 cm 275 lbs / 125 kg 10 +/- 5 mm 90 mm 290 g beige (4)
brown (15)
1D10=L22-0-W/(color) 1D10=R22-0-W/(color)
23 cm 275 lbs / 125 kg 10 +/- 5 mm 90 mm 320 g beige (4)
brown (15)
1D10=L23-0-W/(color) 1D10=R23-0-W/(color)
24 cm 275 lbs / 125 kg 10 +/- 5 mm 90 mm 350 g beige (4)
brown (15)
1D10=L24-0-W/(color) 1D10=R24-0-W/(color)
25 cm 275 lbs / 125 kg 10 +/- 5 mm 90 mm 390 g beige (4)
brown (15)
1D10=L25-0-W/(color) 1D10=R25-0-W/(color)
26 cm 275 lbs / 125 kg 10 +/- 5 mm 90 mm 470 g beige (4)
brown (15)
1D10=L26-0-W/(color) 1D10=R26-0-W/(color)
27 cm 275 lbs / 125 kg 10 +/- 5 mm 90 mm 505 g beige (4)
brown (15)
1D10=L27-0-W/(color) 1D10=R27-0-W/(color)
28 cm 275 lbs / 125 kg 10 +/- 5 mm 90 mm 565 g beige (4)
brown (15)
1D10=L28-0-W/(color) 1D10=R28-0-W/(color)
29 cm 275 lbs / 125 kg 10 +/- 5 mm 90 mm 605 g beige (4)
brown (15)
1D10=L29-0-W/(color) 1D10=R29-0-W/(color)
30 cm 275 lbs / 125 kg 10 +/- 5 mm 90 mm 685 g beige (4)
brown (15)
1D10=L30-0-W/(color) 1D10=R30-0-W/(color)
With Adapter
Size Max. Body Weight Heel Height Min. Clearance Height (w/o Adapter) Product Weight (approx.) Color Options (Footshell) Article Number (Left) Article Number (Right)
22 cm 330 lbs / 150 kg 10 +/- 5 mm 3.5 in / 90 mm 385 g beige (4)
brown (15)
1D10=L22-0-P/(color) 1D10=R22-0-P/(color)
23 cm 330 lbs / 150 kg 10 +/- 5 mm 3.5 in / 90 mm 415 g beige (4)
brown (15)
1D10=L23-0-P/(color) 1D10=R23-0-P/(color)
24 cm 330 lbs / 150 kg 10 +/- 5 mm 3.5 in / 90 mm 445 g beige (4)
brown (15)
1D10=L24-0-P/(color) 1D10=R24-0-P/(color)
25 cm 330 lbs / 150 kg 10 +/- 5 mm 3.5 in / 90 mm 485 g beige (4)
brown (15)
1D10=L25-0-P/(color) 1D10=R25-0-P/(color)
26 cm 330 lbs / 150 kg 10 +/- 5 mm 3.5 in / 90 mm 565 g beige (4)
brown (15)
1D10=L26-0-P/(color) 1D10=R26-0-P/(color)
27 cm 330 lbs / 150 kg 10 +/- 5 mm 3.5 in / 90 mm 600 g beige (4)
brown (15)
1D10=L27-0-P/(color) 1D10=R27-0-P/(color)
28 cm 330 lbs / 150 kg 10 +/- 5 mm 3.5 in / 90 mm 660 g beige (4)
brown (15)
1D10=L28-0-P/(color) 1D10=R28-0-P/(color)
29 cm 330 lbs / 150 kg 10 +/- 5 mm 3.5 in / 90 mm 700 g beige (4)
brown (15)
1D10=L29-0-P/(color) 1D10=R29-0-P/(color)
30 cm 330 lbs / 150 kg 10 +/- 5 mm 3.5 in / 90 mm 780 g beige (4)
brown (15)
1D10=L30-0-P/(color) 1D10=R30-0-P/(color)
