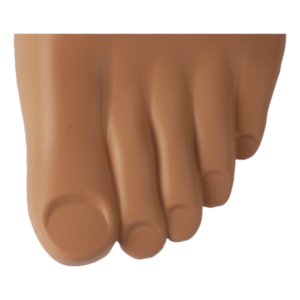

1M10 Adjust incl Footshell
Item #: 1M10Overview

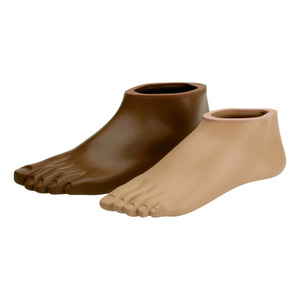

The 1M10 Adjust is a multiaxial foot with adjustable heel characteristic. While walking, the Adjust offers the user a pleasant heel strike, good dampening characteristics and easy rollover. Thanks to this design, the user is able to maintain a stable standing position – regardless of the proportion of the body weight supported by the prosthesis. Its multiaxial joint and the flexibility of the function module and forefoot-ball pad, the Adjust effectively compensates for uneven surfaces. The adjustable function module of the Adjust allows individual heel characteristic requirements to be taken into account when optimizing the prosthesis. The 1M10 Adjust for people who spend most of their time indoors and only venture outside occasionally. The scope of delivery includes the footshell with connection cap and a Spectra-Sock protective sock.
A recent study examined the results of patients when using a SACH foot versus the 1M10. The study found that these patients used less energy and reported greater satisfaction while walking with the 1M10. The study included 20 patients with transtibial amputation (19 K2 and 1 K1).
Specifications
| Activity Level | K1, K2 |
|---|---|
| Maximum Body Weight | 275 lbs (125 kg) |
| Footshell Color | Beige (4), Brown (15) |
| Footshell shape | Slim(S) 15 +/- 5mm, Normal(N) 10 +/- 5mm |
| Side | Right (R), Left (L) |
| Sizes | 22 cm - 30 cm |
| Stiffness | 1, 2, 3 |
| Product weight (w/o footshell) | 405 g - 740 g |
| ~ Min. Clearance Height (Slim, Size 26) | 64 mm (2 1/2") |
| ~ Min. Clearance Height (Normal, Size 26) | 74 mm (3") |
| Stiffness / Size | 22 - 23 cm | 24 - 25 cm | 26 - 27 cm | 28 - 30 cm |
|---|---|---|---|---|
| 1 | Up to 114 lbs (52 kg) | Up to 128 lbs (58 kg) | Up to 158 lbs (72 kg) | Up to 169 lbs (77 kg) |
| 2 | 117 - 160 lbs (53 - 68 kg) | 130 - 167 lbs (59 - 76 kg) | 161 - 209 lbs (73 - 95 lbs) | 172 - 220 lbs (78 - 100 kg) |
| 3 | 152 - 176 lbs (69 - 80 kg) | 169 - 220 lbs (77 - 100 kg) | 211 - 275 lbs (96 - 125 kg) | 222 - 275 lbs (101 - 125 kg) |
