Prosthetic Light Duty Stainless Steel

Item #: 7U42

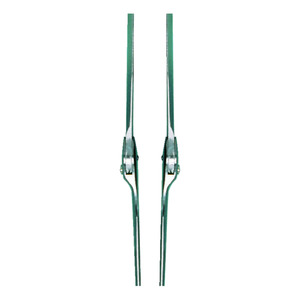

Light duty stainless steel knee joint bar

Log in to order

Overview

Stainless steel joints with ball bearing, joint center placed to the posterior, concave half-round bar profile, forged upper and lower joint bars and the heads of both bars offset outside

Specifications

Milled Head 24x4 mm
Upper Length from Joint Center 340 mm
Lower Length from Joint Center 150 mm
Bar Width 20 mm (0.787 in)
Bar Thickness 2.3 mm
Material Stainless Steel
Quantity Pair

Documents

Refine results

Processing instructions for Ottobock system bars and leg bars – stainless steel –

Product Information: 647G2 (EN/DE/FR/IT/PT/NL/SV/DA/PL/HU/CS/TR/RU/EL)

Publish date: Jul 1, 2013

PDF Document (647G2-INT-03-1307w.pdf | 780 KB)
