Tube adapter long, Ø 30 mm, aluminum

Item #: 2R49=AL

Added to your shopping cart

Suggested HCPCS Coding: Initally included in L5856 or L5858
For Replacement use L7510

Learn more about our Reimbursement Services

Overview

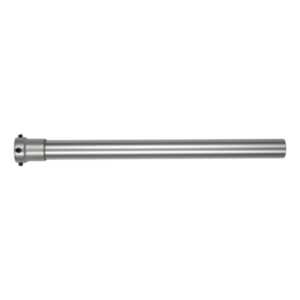

The 2R49=AL tube adapter is used as a component for modular lower limb prostheses. The adapter combinations allow for controlled angle and length adaptation in the sagittal and frontal plane as well as adjustment of inward and outward rotation.

Benefits at a glance:

Aluminum lightweight design with high degree of stability
Weight limit now up to 300 lbs / 136 kg
Reliably tested and certified in accordance with the most recent ISO 10328:2006 standards
Manufacturer warranty
Cost effective
Compatible with the 4R57 rotation adapter

Specifications

Material	Aluminum
Maximum Body Weight	300 lbs (136 kg)
Diameter	30 mm
Product Weight	255 g
Minimum Build Height	53 mm

Aluminum Adapter Line
Article number	4R72=32AL	4R72=45AL	4R72=60AL	4R72=75AL	4R72=90AL	2R49=AL	2R50=AL	4R69=AL	4R74=AL
Product description	Double adapter	Double adapter	Double adapter	Double adapter	Double adapter	Tube adapter	Tube adapter	Tube clamp adapter	Socket adapter with pyramid
Material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Diameter						30 mm	30 mm	30 mm	na
Build height	32 mm	45 mm	60 mm	75 mm	90 mm	454 mm	214 mm	47 mm	26 mm
Weight	80 g	95 g	105 g	110 g	120 g	255 g	155 g	75 g	70 g
Max. body weight	136 kg / 300 lbs	136 kg / 300 lbs	136 kg / 300 lbs	136 kg / 300 lbs	136 kg / 300 lbs	136 kg / 300 lbs	136 kg / 300 lbs	136 kg / 300 lbs	136 kg / 300 lbs
