Sliding Adapter Set

Item #: 4R112

Log in to order

Overview

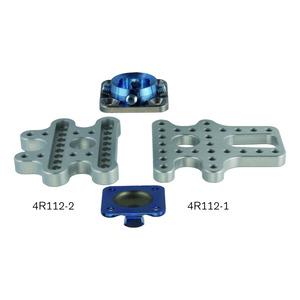

The sliding adapter set is used to optimise the alignment of modular lower limb prostheses within the scope of initial fittings for a limited time and/or interim fittings. It includes 2 mounting plates as well as an adapter with pyramid adapter and an adapter with pyramid receiver. Adjustments in the frontal and sagittal plane as well as the rotation direction are possible.

Specifications

Material Aluminum, Titanium
Product weight 195 g - 510 g
Offset in a-p direction (with mounting plate 1) 48 mm in 12 mm increments
Offset in a-p direction (with mounting plate 2) 24 mm in 12 mm increments
Offset in m-l direction (with mounting plate 1) 24 mm in 12 mm increments
Offset in m-l direction (with mounting plate 2) 18 mm in 9 mm increments
Rotation adjustment +/- 18 degrees in 3 degree increments
Maximum Body Weight 220 lbs (100 kg)
