• Minimal clearance required
• Variable grip speed ranges from 15-130 mm/sec
• Cable Loops in lieu of lamination ring provide more flexibility in fabrication
• 30% lighter and 30% shorter than a standard 8E38 hand for longer amputations
• No Wrist rotation; Patient must be able to actively pronate and supinate the hand

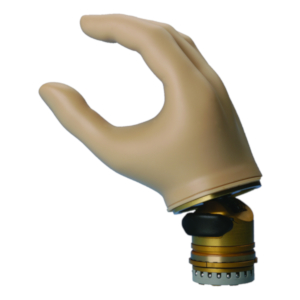

Utilizing cable lamination anchors to maintain a minimum build height, the Transcarpal Hand DMC plus provides a compact myoelectric option for fitting residual limb lengths from wrist disarticulation to transcarpal levels.
The Transcarpal Hand DMC (Dynamic Mode Control) plus provides proportional control of grip speed and grip force in relation to the strength of the muscle signal.
The Transcarpal-Hand DMC plus can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack. It features a centrally guided flat cable, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.
|Hand Size||For||Standard Glove
|Skin Natural Glove
|5||Children 1-3 yrs old||8S20=136x41 (L/R) color||8S20N=136x41 (L/R) color|
|5 1/2||Children 3-6 yrs old||8S20=147x45 (L/R) color||8S20N=147x45 (L/R) color|
|6||Children 5-10 yrs old||8S20=162x56 (L/R) color||8S20N=162x56 (L/R) color|
|6 1/2||Children 8-13 yrs old||8S20=177x64 (L/R) color||8S20N=177x64 (L/R) color|
|7||Women, Adolescents||8S13=7 (L/R) color||8S13=7 (L/R) color|
|7 1/4||Men, Adolescents||8S11=190x76 (L/R) color||8S11N=190x76 (L/R) color|
|7 1/4||Women||8S12=190x78 (L/R) color||8S12N=190x78 (L/R) color|
|7 3/4||Men||8S11=210x78 (L/R) color||8S11N=210x78 (L/R) color|
|8 1/4||Men||8S11=225x80 (L/R) color||8S11N=225x80 (L/R) color|
