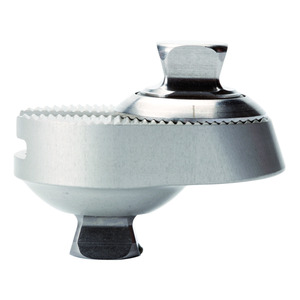

Sliding Adapter P/P
Item #: 6A53Overview
The 6A54 and 6A53 sliding adapters permit the distal components of the modular prosthesis to be shifted in parallel, regardless of the angle adjustment by the pyramid adapters. The adjustments can be made either in the frontal plane (medial or lateral) or in the sagittal plane (anterior or posterior). Adapters can be used for definitive prosthesis.
Connections:
6A54: Pyramid adapter to pyramid adapter connection, weight limit 125 kg / 275 lbs.
6A53: Pyramid adapter to pyramid receiver connection, weight limit 125 kg / 275 lbs.
Specifications
| Article no. | 6A53 / 6A54 |
| Weight | 6.3 oz (180 g) |
| Clearance Height | 1.25" (33 mm) |
| Material | Aluminum |
| Max Displacement | .75" (20 mm with 2mm / increments) |
| Max Body Weight | 275 lbs (125 kg) |
| Build Height | 20 mm (6A53), 33 mm (6A54) |
