Overview

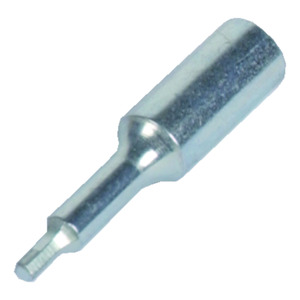

For 710D1 and 710D4 torque wrench, chrome-vanadium, 1/4” square drive.
Available in in the following sizes:
710Y2=3
710Y2=4
710Y2=5
710Y2=6
710Y2=8
710Y2=10
Specifications
Wrench Size | Shaft Length | Maximum Permitted Torque | Weight | Article Number |
---|---|---|---|---|
3 mm | 30 mm | 10.5 Nm | 0.010 kg | 710Y2=3 |
4 mm | 45 mm | 20 Nm | 0.015 kg | 710Y2=4 |
5 mm | 45 mm | 25 Nm | 0.020 kg | 710Y2=5 |
6 mm | 45 mm | 40 Nm | 0.025 kg | 710Y2=6 |
8 mm | 45 mm | 45 Nm | 0.030 kg | 710Y2=8 |
10 mm | 45 mm | 60 Nm | 0.033 kg | 710Y2=10 |
