SiOCX

Upper Limb Options

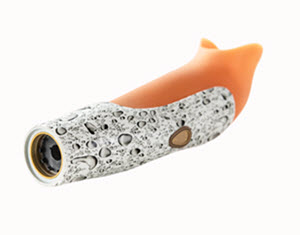

• SiOCX TR: Flexible inner silicone socket fused to carbon pre-preg external frame
• SiOCX TR Flex: Flexible inner silicone socket with specially developed frame with Dyneema-woven fabric in SiOCX TR Flex for even greater proprioception

Click here to download the SiOCX TR Brochure.

Features

• Medical Grade HTV silicone socket
• Easy-to-clean socket system with inner socket that can be sterilized
• Surface suspension for an excellent fit on the residual limb
• Flexible socket edges that adapt to movement
• Enhanced wearer comfort thanks to gel cushion and the flexible ulnar opening in the outer socket
• Non-stick coating

Benefits for the user

• Improved suspension due to increased surface adhesion
• Adaptation of the socket to arm movements due to soft socket edge and flexible socket regions
• Protection of sensitive residual limb areas with gel cushions
• Improved hygiene and comfort
• Easily cleaned with soap and water

What is required for SiOCX orders?

1. Plaster positive mold or well-fitting test or definitive socket (following Custom Silicone General Casting Instructions) with the following identifications:
   • Electrode position and location
   • Adapter
   • Connection between inner and outer socket
   • Position, size, and thickness of any soft tissue pads
2. Completed SiOCX TR or SiOCX TR Flex order form
   • Please review the SiOCX TR Flex Order Information

Considerations:

• Residual Limb Maturity: SiOCX material cannot be adjusted (no heating/flaring, trimming, etc.) therefore a mature limb with stable shape and volume is required.
• Fabrication Time: SiOCX fabrication is completed in Canada. Due to curing times and international customs processing, expedited fabrication time is not possible. Please plan for approximately 6-8 weeks for job completion.

What is the process for SiOCX orders?

After the initial order, this is the process to follow for completion:

The prosthetist sends a plaster positive or a well-fitting test or definitive socket to Otto Bock Service Fabrication. The position of the electrodes, adapter, connection between the inner and outer socket and the position, size and thickness of any soft tissue pads must be identified on the plaster positive. A completed order form is required for additional information.

The individual HTV silicone inner socket is fabricated by Otto Bock Service Fabrication according to the information provided by the prosthetist. The inner socket is supplied for an interim trial fitting along with a hard foam casting form and hand adapter.

This allows the shape, position, and length of the prosthesis to be precisely determined. Then the prosthetist returns the silicone inner socket with the hard foam casting form and hand adapter to Otto Bock Service Fabrication.

The prosthetist receives the definitive SiOCX TR socket. Otto Bock Service Fabrication can also deliver the SiOCX TR socket as a fully assembled prosthesis if desired.
