- Threaded stud wrist suitable for all amputation levels except wrist disarticulation
- Specifically designed for adolescents or women with small hands
- Best choice for those who don’t utilize the AutoGrasp function
- Dynamic Mode Control (DMC) plus control system offers additional security for user and is engaged by removing a function plug
- Three power supply alternatives accommodate variable residual limb shapes
The DMC plus control features a DMC and DMC plus control mode. The desired control mode is selected with the integrated 13E185 Function Plug. In DMC plus control mode, after gripping once with maximum grip force, a higher signal is required to open the hand. This reduces the risk of opening the hand with undesired muscle signals. In this system, two independent measurement and control systems proportionally control gripping speed as well as gripping force. Gripping speed and gripping force are determined by the strength of the muscle signal.

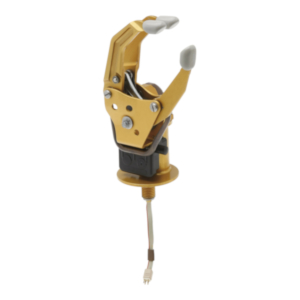

The System Electric Hand DMC plus can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack. It features a central cable outlet with automatic shut-off electronics and integrated on-off switch, low friction bevel gear, positive back lock, and System Inner Hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.
The electrodes must be adjusted with the 757M11 MyoBoy.
|8E41=6-L7||Left||7||6/7.2 V||100 mm||0-90 N||15-130 mm/sec||~355 g||Women, Adolescents|
|8E41=6-R7||Right||7||6/7.2 V||100 mm||0-90 N||15-130 mm/sec||~355 g||Women, Adolescents|
|Hand Size||For||Standard Glove
|Skin Natural Glove
|5||Children 1-3 yrs old||8S20=136x41 (L/R) color||8S20N=136x41 (L/R) color|
|5 1/2||Children 3-6 yrs old||8S20=147x45 (L/R) color||8S20N=147x45 (L/R) color|
|6||Children 5-10 yrs old||8S20=162x56 (L/R) color||8S20N=162x56 (L/R) color|
|6 1/2||Children 8-13 yrs old||8S20=177x64 (L/R) color||8S20N=177x64 (L/R) color|
|7||Women, Adolescents||8S13=7 (L/R) color||8S13=7 (L/R) color|
|7 1/4||Men, Adolescents||8S11=190x76 (L/R) color||8S11N=190x76 (L/R) color|
|7 1/4||Women||8S12=190x78 (L/R) color||8S12N=190x78 (L/R) color|
|7 3/4||Men||8S11=210x78 (L/R) color||8S11N=210x78 (L/R) color|
|8 1/4||Men||8S11=225x80 (L/R) color||8S11N=225x80 (L/R) color|
