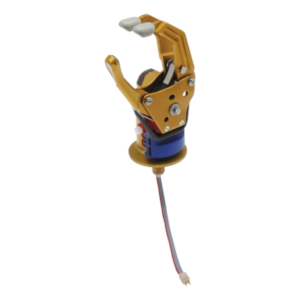

SensorHand Speed

Item #: 8E41=8
With threaded stud wrist connection

Log in to order
Suggested HCPCS Coding: L7007 + L6881 + L6882
Learn more about our Reimbursement Services

With threaded stud wrist connection suitable for all amputation levels, except wrist disarticulation. The SensorHand Speed features the automatic Auto-Grasp SUVA sensor technology, the FlexiGrip function as well as different control modes for the fitting with one or two electrodes.

13E184=* Coding Plugs of various colours or the 757T13 MyoSelect are used to select the desired control mode. Please also note the table in the user manual for this.

13E184=1 (white: DMC plus control)
13E184=2 (red: AutoControl LowInput control)
13E184=3 (green: AutoControl)
13E184=4 (blue: VarioControl)
13E184=5 (yellow: VarioDual Control)
13E184=6 (violet: DMC plus Control SUVA sensors and FlexiGrip can be switched off)

The SensorHand Speed can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack. It features a central cable outlet with automatic shut-off electronics and integrated on-off switch, low friction bevel gear, positive back lock, and System Inner Hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.

Side Size Operating
gripping force
Weight with
inner hand
8E41=8-L7 1/4 Left 7 1/4 6/7.2 V 100 mm 0-100 N 15-300 mm/sec ~462 g Women, Adolescents
8E41=8-L7 3/4 Left 7 3/4 6/7.2 V 100 mm 0-100 N 15-300 mm/sec ~462 g Men
8E41=8-L8 1/4 Left 8 1/4 6/7.2 V 100 mm 0-100 N 15-300 mm/sec ~462 g Men
8E41=8-R7 1/4 Right 7 1/4 6/7.2 V 100 mm 0-100 N 15-300 mm/sec ~462 g Women, Adolescents
8E41=8-R7 3/4 Right 7 3/4 6/7.2 V 100 mm 0-100 N 15-300 mm/sec ~462 g Men
8E41=8-R8 1/4 Right 8 1/4 6/7.2 V 100 mm 0-100 N 15-300 mm/sec ~462 g Men
Myo Glove Sizing for Hands
Hand Size For Standard Glove
Article Number
Skin Natural Glove
Article Number
5 Children 1-3 yrs old 8S20=136x41 (L/R) color 8S20N=136x41 (L/R) color
5 1/2 Children 3-6 yrs old 8S20=147x45 (L/R) color 8S20N=147x45 (L/R) color
6 Children 5-10 yrs old 8S20=162x56 (L/R) color 8S20N=162x56 (L/R) color
6 1/2 Children 8-13 yrs old 8S20=177x64 (L/R) color 8S20N=177x64 (L/R) color
7 Women, Adolescents 8S13=7 (L/R) color 8S13=7 (L/R) color
7 1/4 Men, Adolescents 8S11=190x76 (L/R) color 8S11N=190x76 (L/R) color
7 1/4 Women 8S12=190x78 (L/R) color 8S12N=190x78 (L/R) color
7 3/4 Men 8S11=210x78 (L/R) color 8S11N=210x78 (L/R) color
8 1/4 Men 8S11=225x80 (L/R) color 8S11N=225x80 (L/R) color

8E38=8, 8E39=8, 8E41=8 SensorHand Speed, 8E38=9, 8E39=9, 8E41=9 MyoHand VariPlus Speed - Patient Information

Product Information: 646D165 (EN/DE/FR/IT/ES/PT/NL/SV/EL)

Published Date: September 2, 2015

8E38=8, 8E39=8, 8E41=8 SensorHand Speed - Instructions for Use

Instructions for Use: 647H495 (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/HU/TR/EL/RU/JA)

Published Date: April 7, 2015

Myobock System Overview

Product Information: (EN)

Reimbursement: Toolkit

SensorHand Speed, VariPlus Speed - Information for Practitioners

Product Information: 646D321 (EN)

Published Date: February 1, 2016

MyoBock System Overview

Product Information: 646F277 (EN)

Published Date: January 1, 2013

UL Documentation Packet

Product Information: (EN)

Reimbursement: Documentation Guide

Published Date: February 28, 2020
