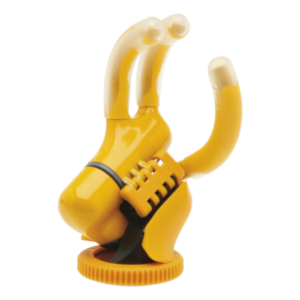

Otto Bock Electrohand 2000
Item #: 8E51Overview
The System 2000 Children's electric hand system can be used for children 1 1/2 to 13 years old and is suitable for virtually all levels of amputation. The thumb and fingers rotate around the same axis, thereby executing a more compact rotation. Depending on the controller, it can be used for 4.8 V and 7.4 V children’s hand fittings. It has passive hand rotation and centralized friction contact.
- In combination with the MyolinoWrist 2000 ball wrist joint with adjustable friction, the Electric Hand 2000 can be positioned in all directions
- Compensating movements of the arm are largely avoided
- Movement patterns and the body posture appear more natural
- Intelligent Battery Management
Delivery includes 9E347=* finger filler but does not include cosmetic glove (8S20*), controller (9E420*, 9E369 or 9E370) or lamination ring (10S16=*).
Available in four sizes:
- Size 5 for children between 1 1/2 and 3 years old
- Size 5 1/2 for children between 3 and 6 years old
- Size 6 for children between 5 and 10 years old
- Size 6 1/2 for children between 8 and 13 years old
- MyoSelect Required for Programming
Specifications
Article number |
Side | Size | Operating voltage |
Opening width |
Approx. minimum grip force |
Weight (without glove) |
---|---|---|---|---|---|---|
8E51=L5 | Left | 5 | 4.8/7.4 V | 28 mm | 8 N | 86 g |
8E51=L5 1/2 | Left | 5 1/2 | 4.8/7.4 V | 37 mm | 25 N | 115 g |
8E51=L6 | Left | 6 | 4.8/7.4 V | 52 mm | 35 N | 125 g |
8E51=L6 1/2 | Left | 6 1/2 | 4.8/7.4 V | 58 mm | 35 N | 130 g |
8E51=R5 | Right | 5 | 4.8/7.4 V | 28 mm | 8 N | 86 g |
8E51=R5 1/2 | Right | 5 1/2 | 4.8/7.4 V | 37 mm | 25 N | 115 g |
8E51=R6 | Right | 6 | 4.8/7.4 V | 52 mm | 35 N | 125 g |
8E51=R6 1/2 | Right | 6 1/2 | 4.8/7.4 V | 58 mm | 35 N | 130 g |
Hand Size | For | Standard Glove Article Number |
Skin Natural Glove Article Number |
---|---|---|---|
5 | Children 1-3 yrs old | 8S20=136x41 (L/R) color | 8S20N=136x41 (L/R) color |
5 1/2 | Children 3-6 yrs old | 8S20=147x45 (L/R) color | 8S20N=147x45 (L/R) color |
6 | Children 5-10 yrs old | 8S20=162x56 (L/R) color | 8S20N=162x56 (L/R) color |
6 1/2 | Children 8-13 yrs old | 8S20=177x64 (L/R) color | 8S20N=177x64 (L/R) color |
7 | Women, Adolescents | 8S13=7 (L/R) color | 8S13=7 (L/R) color |
7 1/4 | Men, Adolescents | 8S11=190x76 (L/R) color | 8S11N=190x76 (L/R) color |
7 1/4 | Women | 8S12=190x78 (L/R) color | 8S12N=190x78 (L/R) color |
7 3/4 | Men | 8S11=210x78 (L/R) color | 8S11N=210x78 (L/R) color |
8 1/4 | Men | 8S11=225x80 (L/R) color | 8S11N=225x80 (L/R) color |
