Cable Pull Switch

Item #: 9X18

Log in to order
Suggested HCPCS Coding: Included in base code for switch controlled device. Use L6611 if added to Myo device

Learn more about our Reimbursement Services

Overview

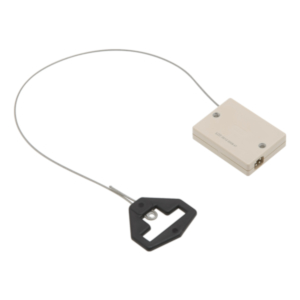

The 9X18 Cable Pull Switch for harness systems controls a myoelectric terminal device and/or wrist rotator.

  • 9X18 Cable Pull Switch includes the steel cable, bow and wedge lock; the switch housing is screwed onto the socket and the steel cable is connected to the harness or pull cable for controlling the myoelectric device.
  • For controlling the 10S17 Electric Wrist Rotator, the 8E38=7, 8E38=8, 8E38=9 and 8E12 System Electric Hand or the 8E33=* System Electric Greifer.
  • Functional sequence: off – function 1, – off – function 2.
  • Weight: 17 g



Scope of delivery includes:

  • 501S46=M3x5 Oval Head Countersunk Screw (2 pieces)
  • 501S46=M3x8 Oval Head Countersunk Screw (2 pieces)

Documents

Refine results

9X18 Cable Pull Switch - Instructions for Use

Instructions for Use: 647G401 (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/EL/JA)

Publish date: Jan 22, 2013

PDF Document (647G401-INT-05-1301w.pdf | 518 KB)

MyoBock System Overview

Product Information: 646F277 (EN)

Publish date: Jan 1, 2013

PDF Document (646F277-GB-05-1301w.pdf | 1 MB)
