Overview

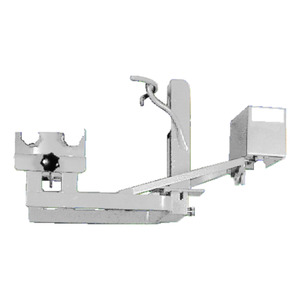

For attachment to the Ottobock 743A11 casting apparatus. Provides functional casting of ischial containment sockets while bearing weight. Has pneumatic pressure adjustment and a short-stroke cylinder. Pressure regulator provides individual pressure adjustment of the femoral pad. The pneumatic unit of the SIT* cast casting apparatus can be directly connected to the compressed air supply system (connecting hose and service unit with pressure regulator are not included in the delivery).
Scope of Delivery:
ncludes 8 SIT-casting forms: 743Y50=L1, =R1, =L2, =R2, =L3, =R3, =L4, =R4
Specifications
| Side | Size | Article no. | Included with 743G1 | Included with 743G10 |
| Left | 0 | 743Y50=L0 | ||
| Left | 1 | 743Y50=L1 | Yes | Yes |
| Left | 2 | 743Y50=L2 | Yes | Yes |
| Left | 3 | 743Y50=L3 | Yes | |
| Left | 4 | 743Y50=L4 | Yes | |
| Right | 0 | 743Y50=R0 | ||
| Right | 1 | 743Y50=R1 | Yes | Yes |
| Right | 2 | 743Y50=R2 | Yes | Yes |
| Right | 3 | 743Y50=R3 | Yes | |
| Right | 4 | 743Y50=R4 | Yes |
