Varos

Item #: 5A60=R-M

Log in to order

Benefits for CPO:

  • Easier and faster fitting than with standard socket thanks to innovative Varos modular socket structure
  • Easy length adjustment by cutting socket shell and side rails
  • Time saving: less patient visits needed to achieve a good fitting result
  • Less effort for socket fit adaptations
  • Easy alignment optimization (spherical adapter included allowing for a hip flexion compensation up to 15°)
  • Varos can be tested (socket test set available) or used for testing (e.g. observation of gait pattern)

Benefits for User:

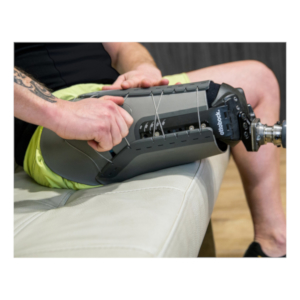

  • Socket being adjustable for limb volume variations and different activities (Boa Fit System)
  • High wearing comfort (more material flexibility than with standard socket)
  • Secure hold in the socket (magnetic distal liner connection, good static friction properties of the specific Varos liner)
  • Low product weight thanks to lightweight construction
  • Easy donning and doffing even when seated
  • Easier and faster fitting than with standard socket



Size 5A60=L-M (Left)
5A60=R-M (right)
Proximal circumference 480mm - 580mm
Distal circumference 350mm - 440mm
Limb length 200mm - 320mm
Adjustable socket length 200mm - 320mm
Maximum body weight 220 lbs. (100 kg)
Socket weight (full length) 2.9 lbs. (1320 g)
Liner weight (full length) 1.4 lbs. (65 0g)
6Y200=M-2

Varos Liner

6Y200=M-1

Varos Liner

6Y200=M-1

Varos Liner

6Y200=M-2

Varos Liner

5A60=* Varos Instructions for Use

Instructions for Use: (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/FI/JA)

Published Date: June 26, 2020
