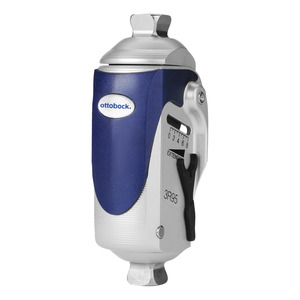

Lightweight Hydraulic Knee,<lt/>330lbs<l
Item #: 3R95Overview
Small, lightweight and with powerful linear hydraulics for swing phase control. Particularly well suited for highly active users.
Additional Features - The flexion and extension resistance used to control the swing phase can be adjusted separately and precisely using a scale on the joint. - The design of the hydraulic linkage geometry allows powerful resistance even with a high degree of flexion. The extension resistance can be set to a low value, since hydraulic end position damping ensures a soft transition to the elastic stop. - The stance phase is secured by posterior placement of the joint and active control by the user. - Cosmetically very advantageous thanks to the compact design.
Specifications
Activity Level | K3, K4 |
---|---|
Maximum Body Weight | 330 lbs (150 kg) |
Material | Aluminum |
Proximal Connection | Pyramid Adapter |
Distal Connection | Pyramid Adapter |
Maximum Knee Flexion Angle | 135 degrees |
Knee Center to Proximal Connection | 40 mm |
Product Weight | 360 g |
Build Height | 98 mm |
Distal Build Height | 74 mm |
Proximal Build Height | 24 mm |
