Relief for the back and residual limb – because EBS technology in the 3R60 facilitates controlled knee flexion. Proven functionality in three unique options – our standard 3R60, the smaller and lighter 3R60 pro version, and now the 3R60=VC with an integrated vacuum pump for supreme suspension.
EBS stands for Ergonomically Balanced Stride. We improved this proven, unique construction – which has proven itself thousands of times – with this new generation of the 3R60.
The 3R60’s EBS securely provides up to 15 degrees of knee flexion at heel strike. This helps avoid hip hiking and other compensatory movements during the gait cycle. The knee is easily adjusted to suit the user’s individual needs.
An innovative hydraulic system controls the behavior of the knee joint during swing phase. The dampening values of the hydraulic system are based on gait analysis investigations. For the user, this mainly means that he or she can easily initiate swing phase and use a wide range of walking speeds. Flexion and extension dampening can be individually adapted to fit the user.
The new generation of the 3R60 is smaller and at just 845 grams, also lighter than its predecessor. Four proximal connections are available for the knee so that you can easily fit different amputation levels.
|Maximum Body Weight||275 lbs (125 kg)|
|Stance flexion||Constant level achieved with elastomer bumper|

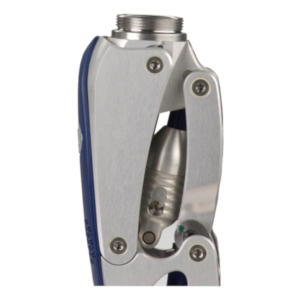

|Proximal Connection||Threaded top|
|Distal Connection||Pyramid Adapter|
|Maximum Knee Flexion Angle||175 degrees|
|Knee Center to Proxiaml Connection||22 mm|
|Product Weight||845 g|
|Water Exposure||Splash Water Resistant|
|Build Height||207 mm|
|Distal Build Height||191 mm|
|Proximal Build Height||16 mm|
