Trias
Item #: 1C30
Restrictions to Coding and/or Coverage may apply
Learn more about our Reimbursement Services
Overview

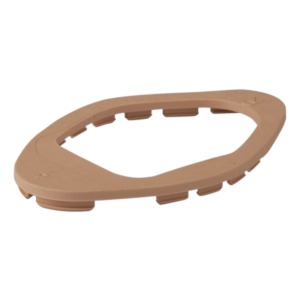

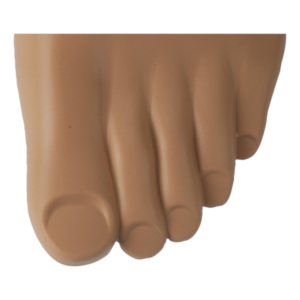

The 1C30 Trias is an extraordinary solution for a prosthetic foot – a combination of creative design and innovative lightweight construction technology. Interconnected dual spring elements provide relief with dampening at heel strike and enable a physiological rollover with excellent energy return. Secure, controlled movements help the user build self-confidence. The foot adapts to different walking speeds and to uneven terrain without a loss of comfort, while simultaneously reducing strain on the sound limb.The scope of delivery for the Trias includes the footshell with connection cap and a Spectra sock.
Specifications
| Activity Level | K3 |
|---|---|
| Maximum Body Weight | 275 lbs (125 kg) |
| Heel Height | Normal footshell (N) 10 +/- 5 mm, Slim footshell (S) 20 +/- 5 mm |
| Footshell Color | Beige (4), Brown (15) |
| Footshell Shape | Normal (N), Slim (S) |
| Side | Right (R), Left (L) |
| Sizes | 21 cm - 30 cm |
| Stiffness | 1, 2, 3, 4 |
| Product Weight (w/o footshell) | 340 g - 645 g |
| ~ Min. Clearance Height (Size 21-24 cm) | 105 mm (4 1/8") |
| ~ Min. Clearance Height (Size 25 & 26 cm) | 111 mm (4 3/8") |
| ~ Min. Clearance Height (Size 27 cm) | 124 mm (4 7/8") |
| ~ Min. Clearance Height (Size 28 & 29 cm) | 127 mm (5") |
| 21 cm | 22 cm | 23 cm | 24 cm | 25 cm | 26 cm | 27 cm | 28 cm | 29 cm | 30 cm | |
|---|---|---|---|---|---|---|---|---|---|---|
| 99 to 133 lbs (45 to 60 kg) | 1 (S/N) | 1 (S/N) | 1 (S/N) | 1 (S/N) | ||||||
| 134 to 177 lbs (61 - 80 kg) | 2 (S/N) | 2 (S/N) | 2 (S/N) | 2 (S/N) | 1 (S/N) | 1 (S/N) | 1 (N) | 1 (N) | ||
| 178 to 210 lbs (81 - 95 kg) | 3 (S/N) | 3 (S/N) | 2 (S/N) | 2 (S/N) | 2 (N) | 2 (N) | 1 (N) | 1 (N) | ||
| 211 to 244 lbs (96 - 110 kg) | 3 (S/N) | 3 (S/N) | 3 (N) | 3 (N) | 2 (N) | 2 (N) | ||||
| 245 to 275 lbs (111 - 125 kg) | 4 (N) | 4 (N) | 3 (N) | 3 (N) |
Documents
1C30 Trias - Instructions for Use
Instructions for Use: 647G279 (EN/DE/FR/IT/ES/PT/NL/SV/DA/PL/HU/CS/HR/TR/EL/RU/JA/ZH/KO)
Publish date: May 31, 2020
LLP Prosthetist Documentation
Reimbursement: (EN)
Publish date: Sep 3, 2020
PDF Document (LLP_Prothetist_Doumentation_122420.pdf | 1 MB)
LLP Physician Documentation
Reimbursement: (EN)
Publish date: Dec 23, 2020
PDF Document (LLP_Physician_Documentation_122320.pdf | 680 KB)
1C30 Trias Brochure
Product Information: 646D744 (EN)
Publish date: Apr 1, 2017
1C30 Trias Foot Specification Sheet
Product Information: (EN)
Publish date: Apr 1, 2017
Foot Family Poster
Product Information: (EN)
Publish date: Nov 1, 2018
Function Matrix – Prosthetic Feet
Product Information: 646F307 (EN)
Publish date: Sep 1, 2012
Foot Size Conversion Table
Product Information: (EN)
Publish date: Dec 1, 2016
Foot Portfolio Flyer
Product Information: (EN)
Publish date: Sep 2, 2020
PDF Document (18600_Foot_Portfolio_Flyer_B2B_D.pdf | 636 KB)
