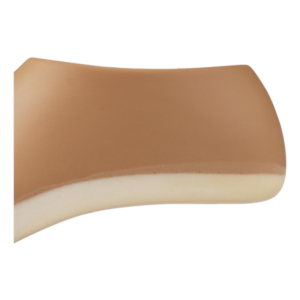

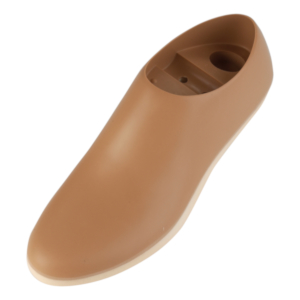

The 1H32 (25 mm heel height) Single Axis Foot and 1H34 (35 mm heel height) Single Axis Foot feature a two-part design, and have different foot shapes. The 1H32 has a standard foot shape while the 1H34 is slimmer. In combination with the single axis joint, single axis feet allow the amputee to achieve a secure stance quickly. They are especially suitable for transfemoral fittings.
Sizes 22-25 require 2R33=22-25 titanium adapter, 2R51=22-25 aluminum, or 2R10=22-25 steel adapter.
Sizes 26-27 require 2R33=26-30 titanium adapter, 2R51=26-27 aluminum, or 2R10=26-30 steel adapter.
| Size | Max. Body Weight | Heel Height | Product Weight (without Adapter), approx. | Color | Article Number (Left Foot) | Article Number (Right Foot) |
|---|---|---|---|---|---|---|
| 22 cm | 220 lbs / 100 kg | 35 +/- 5 mm | 300 g | beige / white | 1H34=L22 | 1H34=R22 |
| 23 cm | 220 lbs / 100 kg | 35 +/- 5 mm | 315 g | beige / white | 1H34=L23 | 1H34=R23 |
| 24 cm | 220 lbs / 100 kg | 35 +/- 5 mm | 335 g | beige / white | 1H34=L24 | 1H34=R24 |
| 25 cm | 220 lbs / 100 kg | 35 +/- 5 mm | 355 g | beige / white | 1H34=L25 | 1H34=R25 |
| 26 cm | 220 lbs / 100 kg | 35 +/- 5 mm | 380 g | beige / white | 1H34=L26 | 1H34=R26 |
| 27 cm | 220 lbs / 100 kg | 35 +/- 5 mm | 420 g | beige / white | 1H34=L27 | 1H34=R27 |
