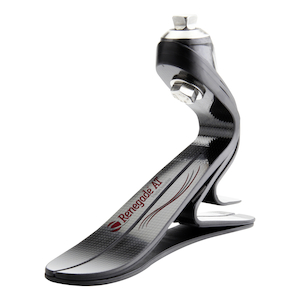

Renegade AT
Item #: R11=0_BOverview
Setting a new standard for versatile, durable performance, the Renegade AT (All Terrain) prosthetic foot combines proprietary EnduraCore® Technology with multi-axial function in an extremely lightweight and uniquely integrated design. Add to this exceptional shock absorption and up to 35% greater energy return, and the result is a prosthetic foot that’s truly game-changing.
Features
- Water-resistant
- EnduraCore® Technology
- Proprietary composite-laminate delivers up to 3 times the fatigue life of a standard laminate in a design that also returns up to 35% more energy than competitive alternatives. The result is a more durable product that helps to preserve energy so users can do more with confidence.
- Vertical Shock Absorption: Patented, industry proven Z-Shock Technology™ helps preserve skin integrity while increasing user comfort.
- Multi-Axial Performance: Split-toe design delivers +/-15 degrees inversion/eversion for All.Terrain control and enhanced stability.
- Lightweight: Weighing in at just 515 grams excluding footshell, the Renegade AT prosthetic foot is more comfortable and requires less exertion.
- Unique Integrated Design: Design integration improves reliability with fewer components subject to failure.
Specifications
Activity Level | K3, K4 |
---|---|
Maximum Body Weight | 365 lbs (166 kg) |
Sizes | 22 cm - 31 cm |
Stiffness | 1, 2, 3, 4, 5, 6, 7, 8, 9 |
Heel Height | 3/8" (10 mm) |
Footshell Color | Light, Dark |
~ Min. Clearance Height (Size 26 cm) | 184 mm (7 1/4") |
Product Weight (w/ footshell) (Size 26 cm) | 26.81 oz (760 g) |
Low Activity | Moderate Activity | High Activity | |
---|---|---|---|
100 - 115 lbs / 44 - 52 kg | 1 | 1 | 2 |
116 - 130 lbs / 53 - 59 kg | 1 | 2 | 3 |
131 - 150 lbs / 60 - 68 kg | 2 | 3 | 4 |
151 - 170 lbs / 69 - 77 kg | 3 | 4 | 5 |
171 - 195 lbs / 78 - 88 kg | 4 | 5 | 6 |
196 - 220 lbs / 89 - 100 kg | 5 | 6 | 7 |
221 - 255 lbs / 101 - 116 kg | 6 | 7 | 8 |
256 - 285 lbs / 117 - 130 kg | 7 | 8 | 9 |
286 - 325 lbs / 131 - 147 kg | 8 | 9 | N/A |
326 - 365 lbs / 148 - 166 kg | 9 | N/A | N/A |
Documents
Instructions for Use - R11 Renegade AT and R16 Renegade LP-AT
Instructions for Use
PDF Document | Published: Dec 9, 2021
