Lo Rider 09mm HH
Item #: 1E57
Restrictions to Coding and/or Coverage may apply
Learn more about our Reimbursement Services
Overview

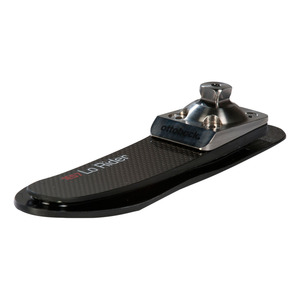

The 1E57 Lo Rider is a dynamic foot for Symes amputees. In cases with a very low clearance, the foot can be ordered without pyramid adapter (as an option) and used in conjunction with the XO coupler. The scope of delivery for the Lo Rider includes the Spectra-Sock.
The footshell for the Lo Rider is available in 2 different colors – beige (4) and light brown (15). The scope of delivery for the Lo Rider does not include the footshell. It is listed separately as an accessory.
The ankle moments of the Lo Rider cause heavy strain on the adjacent prosthetic components. Therefore, it is necessary to use adapters of the next higher weight class below the knee joint (e.g. for a patient with a body weight of 90 kg (198 lbs): use adapters rated up to 125 kg (275 lbs)). The prosthetic foot is designed for use with a footshell. Without a footshell, the individual foot is shorter than the size indicates.
Specifications
| Activity Level | K3, K4 |
|---|---|
| Maximum Body Weight | 300 lbs (136 kg) |
| Footshell Color | Beige (4), Brown (15) |
| Side | Right (R), Left (L) |
| Sizes | 22 cm - 31 mm |
| Product weight (w/o footshell) | 435 g - 675 g |
| ~ Min. Clearance Height (w/ pyramid) | 29 mm (1 1/8") |
| ~ Min. Clearance Height (w/ XO Coupler) | 37 mm (1 7/16") |
Documents
1E57 Foot - Instructions for Use
Instructions for Use: 647G1351 (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/FI/PL/HU/CS/RO/HR/SL/SK/BG/TR/EL/RU/JA/ZH/KO)
Publish date: Aug 1, 2020
Foot Family Poster
Product Information: (EN)
Publish date: Nov 1, 2018
LL Prosthetic Documentation Packet
Reimbursement: (EN)
Publish date: Jul 20, 2020
