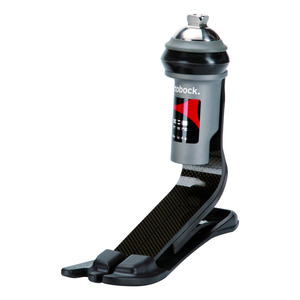

1C61 Triton VS

Item #: 1C61

Log in to order
Suggested HCPCS Coding: L5986 + L5987
Restrictions to Coding and/or Coverage may apply

PDAC Verified
Learn more about our Reimbursement Services

Overview

The Triton Vertical Shock extends the excellent functionality of the 1C60 Triton carbon foot with enhanced shock absorption and torsion resistance.

Thanks to its innovative design, the Triton carbon foot supports a particularly broad range of applications from everyday use to recreational sports. The additional functionality of the 1C60 Triton Vertical Shock results in better adaptation to uneven surfaces for the user.

Vertical and torsional forces, which occur for example during sports, are effectively reduced. This results in noticeable relief for the user's residual limb.

Thanks to the compact design of the Triton Vertical Shock, the system is also suitable for patients with longer transtibial residual limbs.

The scope of delivery for the Triton Vertical Shock includes a Spectra-Sock, the footshell with connection cap, a transparent (soft) and anthracite (firm) heel wedge and a pre-assembled functional ring.

Specifications

Activity Level K3, K4
Maximum Body Weight 330 lbs (150 kg)
Heel Height Normal footshell (N) 10 +/- 5mm, Slim footshell (S) 15 +/- 5 mm
Footshell Color Beige (4), Brown (15)
Footshell shape Slim(S) 15 +/- 5mm, Normal(N) 10 +/- 5mm
Side Right (R), Left (L)
Sizes 21 cm - 30 cm
Stiffness 1, 2, 3, 4, 5
Functional Ring 0, 1, 2, 3, 4, 5, 6, 7, 8, 9
Standard Warranty 3 years
Product weight (w/o footshell) 655 g – 840 g
~ Min. Clearance Height (Slim, Size 21cm) 196 mm (7 3/4")
~ Min. Clearance Height (Slim, Size 22cm) 197 mm (7 3/4")
~ Min. Clearance Height (Slim, Size 23cm) 199 mm (7 5/8")
~ Min. Clearance Height (Slim, Size 24cm) 200 mm (7 5/8")
~ Min. Clearance Height (Slim, Size 25cm) 208 mm (8 3/16")
~ Min. Clearance Height (Slim, Size 26-27 cm) 210 mm (8 1/4")
~ Min. Clearance Height (Normal, Size 24 cm) 201 mm (7 5/8")
~ Min. Clearance Height (Normal, Size 25 cm) 203 mm (8")
~ Min. Clearance Height (Normal, Size 26 cm) 205 mm (8 1/16")
~ Min. Clearance Height (Normal, Size 27cm) 209 mm (8 1/4")
~ Min. Clearance Height (Normal, Size 28 cm) 211 mm (8 5/16")
~ Min. Clearance Height (Normal, Size 29 cm) 217 mm (8 1/2")
~ Min. Clearance Height (Normal, Size 30 cm) 219 mm (8 5/8")
Spring - functional ring stiffness (footshell shape)
21 cm 22 cm 23 cm 24 cm 25 cm 26 cm 27 cm 28 cm 29 cm 30 cm
106 to 122 lbs (48 - 55 kg) 1-1 (S) 1-1 (S) 1-1 (S) 1-1 (S/N) 1-1 (S/N) 1-1 (S/N)
123 to 144 lbs (56 - 65 kg) 2-2 (S) 2-2 (S) 2-2 (S) 2-2 (S/N) 2-2 (S/N) 2-2 (S/N) 2-2 (S/N) 2-2 (N) 2-2 (N) 2-2 (N)
145 to 166 lbs (66 - 75 kg) 2-3 (S) 2-3 (S) 2-3 (S) 2-3 (S/N) 2-3 (S/N) 2-3 (S/N) 2-3 (S/N) 2-3 (N) 2-3 (N) 2-3 (N)
167 to 193 lbs (76 - 87 kg) 3-4 (S) 3-4 (S) 3-4 (S) 3-4 (S/N) 3-4 (S/N) 3-4 (S/N) 3-4 (S/N) 3-4 (N) 3-4 (N) 3-4 (N)
194 to 221 lbs (88 - 100 kg) 3-5 (S) 3-5 (S) 3-5 (S) 3-5 (S/N) 3-5 (S/N) 3-5 (S/N) 3-5 (S/N) 3-5 (N) 3-5 (N) 3-5 (N)
222 to 248 lbs (101 - 112 kg) 4-6 (S/N) 4-6 (S/N) 4-6 (S/N) 4-6 (N) 4-6 (N) 4-6 (N)
249 to 276 lbs (113 - 125 kg) 4-7 (S/N) 4-7 (S/N) 4-7 (S/N) 4-7 (N) 4-7 (N) 4-7 (N)
277 to 303 lbs (126 - 137 kg) 5-8 (S/N) 5-8 (S/N) 5-8 (S/N) 5-8 (N) 5-8 (N) 5-8 (N)
304 to 330 lbs (138 - 150 kg) 5-9 (S/N) 5-9 (S/N) 5-9 (S/N) 5-9 (N) 5-9 (N) 5-9 (N)

Documents

Refine results

PDAC Letter

Product Information: (EN)

Publish date:

PDF Document (1C61PDAC.pdf | 91 KB)

Function Matrix – Prosthetic Feet

Product Information: 646F307 (EN)

Publish date: Sep 1, 2012

PDF Document (646F307-EN-05-1209w.pdf | 5 MB)

Body weight and foot size chart

Product Information: 647G958 (EN/DE)

Publish date: Aug 1, 2015

PDF Document (647G958-DE_EN-03-1508w.pdf | 214 KB)

1C61 Triton Vertical Shock Prosthetic Foot - Instructions for Use

Instructions for Use: 647G674 (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/FI/PL/HU/CS/RO/HR/SL/SK/BG/TR/EL/RU/JA/ZH/KO)

Publish date: Jun 26, 2017

PDF Document (647G674-INT-11-1707w.pdf | 2 MB)

Foot Size Conversion Table

Product Information: (EN)

Publish date: Dec 1, 2016

PDF Document (Foot-Size-Conversion-Table.pdf | 160 KB)

Triton Family Brochure

Product Information: (EN)

Publish date: Apr 1, 2017

PDF Document (12042309_1D_OB-Triton_Bro_KL.pdf | 1 MB)

Foot Family Poster

Product Information: (EN)

Publish date: Sep 2, 2020

PDF Document (18604_Foot_Family_Poster_9-20_P2.pdf | 1 MB)

LL Prosthetic Documentation Packet

Product Information: (EN)

Publish date: Jul 20, 2020

PDF Document (LLP_DocumentationPkt_072020.pdf | 1 MB)

LL Prosthetic Documentation Packet

Product Information: (EN)

Publish date: Jul 20, 2020

PDF Document (LLP_DocumentationPkt_072020.pdf | 1 MB)
