TF Sports Foot Adapter, compl.

Item #: 4R206

Log in to order

Overview

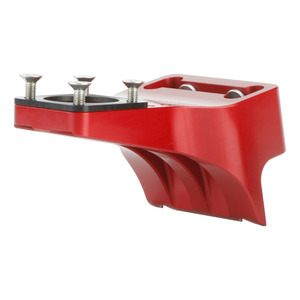

The 4R206 TF Test Fitness Foot Adapter in combination with a suitable socket adapter (e.g. 4R77 or 4R51) joins the 1E90 Sprinter prosthetic fitness foot to a prosthetic sport knee joint (e.g. 3S80). It is intended exclusively for trial fitting and enables selection of a suitable 1E90 Sprinter model. The foot is inserted into the adapter and can be adjusted vertically. A clamping mechanism allows the adapter to be secured and released at various heights, thereby helping to establish the suitable height and length of the foot and subsequently shorten it accordingly. The horizontal offset of the socket adapter permits anterior or posterior placement of the foot if required. Three different positions are possible.

Specifications

Material Aluminum
Maximum Body Weight 220 lbs (100 kg)
Product Weight 580 g

Documents

Refine results

4R204, 4R206 TF Sport Foot Adapters - Instructions for Use

Instructions for Use: 647G839 (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/FI/HR/JA)

Publish date: Oct 11, 2020

PDF Document (647G839-all_INT-05-2009w.pdf | 1 MB)
