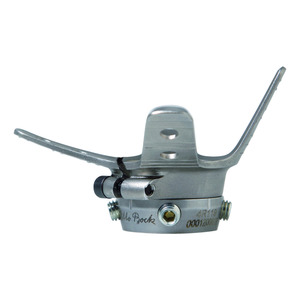

Lamination Anchor with angled arm

Item #: 4R119
4-arm lamination anchor

Log in to order

Overview

The 4R119 Lamination Anchor features an angled anchor arm, which is to be positioned posteriorly. This allows the adapter to be positioned easily for optimised prosthesis alignment (note the socket position and/or the flexion angle).

Only suitable for use in transfemoral prostheses. Use the 4X46 Lamination Dummy when laminating. It must be ordered separately.

Specifications

Material Stainless Steel
Maximum Body Weight 330 lbs (150 kg)
Product Weight 165 g

Documents

Refine results

4R119 Lamination Anchor

Product Information: 646D290 (EN)

Publish date: Jul 1, 2010

PDF Document (646D290-GB-02-1007w.pdf | 548 KB)

4R111, 4R111=N, 4R111=T, 4R116, 4R116=T, 4WR95=2, 4R117, 4R117=T, 4R119=N, 4R119=NT, 4R119, 4R119=T, 4WR95=1 Four Arm Lamination Anchors, 4R41, 4R42, 4R42=1, 4R43, 4R89 Three Arm Lamination Anchors - Instructions for Use

Instructions for Use: 647G123 (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/PL/HU/CS/RO/HR/BS/TR/EL/RU/JA/ZH)

Publish date: Jul 9, 2020

PDF Document (647G123-all_INT_INT-20-2006w(3553532)_en.pdf | 2 MB)
