System Wedge Lock Knee Joint Titanium

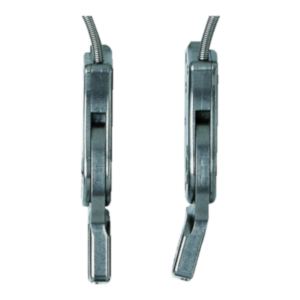

Item #: 17B105=L16Titanium Medial joint has contoured lower bar and straight upper bar, straight lateral joint with wedge lock and cable pull release
Suggested HCPCS Coding: Initial: (Base Code) L2405, L2415 per joint); Replacement: L2405, L2415
Learn more about our Reimbursement Services
Overview
Titanium Medial joint has contoured lower bar and straight upper bar, straight lateral joint with wedge lock and cable pull releaseSpecifications
| Side | Left |
|---|---|
| System Width | 16 mm (0.629 in) |
| Upper Length from Joint Center | 45 mm |
| Lower Length from Joint Center | 41 mm |
| Material | Titanium |
| Quantity | Pair |
| Article Number | 17B105=L16 | 17B105=L20 | 17B105=R16 | 17B105=R20 |
|---|---|---|---|---|
| Side | Left | Left | Right | Right |
| System Width | 16 mm (0.629 in) | 20 mm (0.787 in) | 16 mm (0.629 in) | 20 mm (0.787 in) |
| Upper Length from Joint Center | 45 mm | 45 mm | 45 mm | 45 mm |
| Lower Length from Joint Center | 41 mm | 41 mm | 41 mm | 41 mm |
| Material | Titanium | Titanium | Titanium | Titanium |
| Quantity | Pair | Pair | Pair | Pair |
Spare parts
Documents
17B105, 17B106 System Knee Joints with Wedge Lock and Remote Cable-Release - Instructions for Use
Instructions for Use
PDF Document | Published: Oct 6, 2015
