Syst.-Cable Release Jt.Hd.
Item #: 17B95=L16Medial joint contoured bottom, straight top, lateral joint straight with wedge lock and pull-release cable
Suggested HCPCS Coding: Initial: (Base Code) L2415; Replacement: L2415;
If Applicable: L2492 (lift loop), L2385 for patient weight over 300lbs
Learn more about our Reimbursement Services
Overview

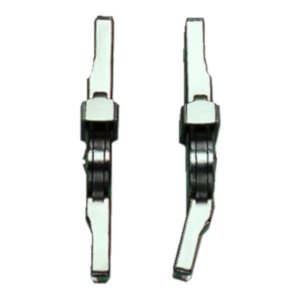

Stainless steel medial joint has contoured lower bar and straight upper bar, straight lateral joint, with wedge lock and cable pull release.
16 mm or 20 mm system width: applicable for up to 50 kg (110 lbs.) body weight.
Specifications
| Article Number | 17B95=L16 | 17B95=R16 | 17B95=L20 | 17B95=R20 |
|---|---|---|---|---|
| Side | Left | Right | Left | Right |
| System Width | 16 mm (0.629 in) | 16 mm (0.629 in) | 20 mm (0.787 in) | 20 mm (0.787 in) |
| Milled Head | 23x4 mm | 23x4 mm | 30x5 mm | 30x5 mm |
| Upper Length from Joint Center | 50 mm | 50 mm | 58 mm | 58 mm |
| Lower Length from Joint Center | 40 mm | 40 mm | 42 mm | 42 mm |
| Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Quantity | Pair | Pair | Pair | Pair |
