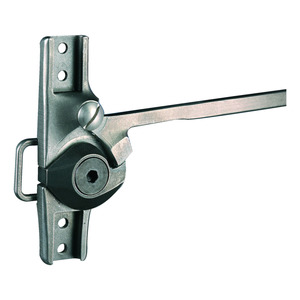

Syst.-Adj.Swiss Lock Knee Joint

Item #: 17B44=L16
Contoured medial joint, straight lateral joint, Swiss lock with flexion adjustment

Log in to order
Suggested HCPCS Coding: Initial: (Base Code) L2415 + L2425
Replacement: L2415 + L2425
If Applicable: L2385 for patient weight over 300lbs
Learn more about our Reimbursement Services

Stainless steel Contoured medial joint, straight lateral joint. Swiss lock features flexion adjustment.
Please observe Instructions for Use 647G43! For use in gait orthoses approved only for up to 16° flexion and with a maximal body weight of 100 kg (220 lbs)!

Side Left
System Width 16 mm (0.629 in)
Upper Length from Joint Center 56 mm
Lower Length from Joint Center 38 mm
Material Stainless Steel
Quantity Pair

17B44 Swiss Lock Knee Joint - Instructions for Use

Instructions for Use: 647G43 (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/PL/HU/CS/TR/EL/RU)
