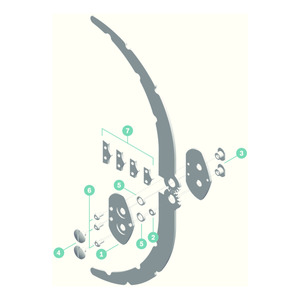

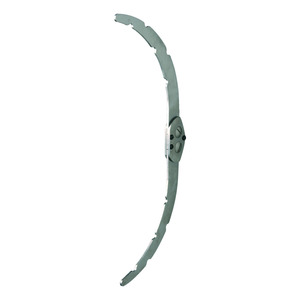

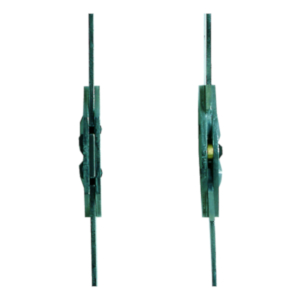

With gear drive and free motion joints. Upper and lower bars are curved and notched. For embedding into laminate and thermoplastics. Interchangeable stops to limit extension.
|Upper Length from Joint Center||340 mm|
|Lower Length from Joint Center||300 mm|
|Pivot Point Distance||16 mm (0.629 in)|
|Bar Width||21 mm|
|Bar Thickness||2 mm (0.0787 in)|
|Joint Thickness||6 mm|
