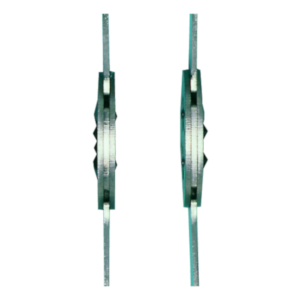

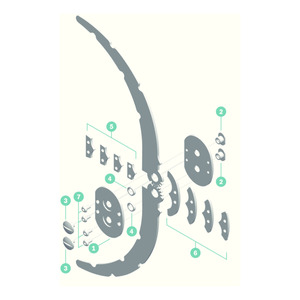

With gear drive. Joints have interchangeable stops to limit extension as well as flexion (ranges listed below). Upper and lower bars are curved and notched. For embedding into laminates and thermoplastics.
|Upper Length from Joint Center||340 mm|
|Lower Length from Joint Center||300 mm|
|Pivot Point Distance||16 mm (0.629 in)|
|Bar Width||21 mm|
|Bar Thickness||2 mm (0.0787 in)|
|Joint Thickness||6 mm|
