RGO Hip Joint System

Item #:17H100=2
up to 34 kg body weigth, 200 - 260 mm pelvic width, 4-8 years age

Expected Availability 6/15/19
Log in to order
Suggested HCPCS Coding: Base Code: L2036 (x2) or L2037 (x2) Pelvic Section: L2570 + L2627 + L2680 (x2) + L2768 (x2) + L2999 (pelvic rotation feature) Knee Section: L2415 ( x2 or x4)+ L2395 (x2 or x4) Ankle Section Options: L2250 (x2 or x4) , L2200 (x2 or x4), L2210 (x2 or x4), L2220 (x2 or x4)
Additional Options: L2340 (Special Request, x2), L2820 (x2), L2830 (x2), L2492, L2780
See RGO Reimbursement Tool Kit

PDAC Verified for L2999 only
Learn more at Reimbursement Services

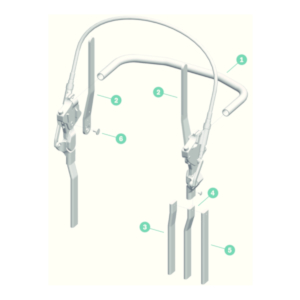

Special features of the Ottobock® RGO hip joint system
• Easy to use modular system.
• Replacing individual components allows "growing" with the user.
• Lightweight alloy pelvic tube with high torsional strength allows for modular connection of joints.
• The bi-axial system allows for a pelvic rotation of 15° in the orthosis without changing the walking direction.
• Smooth and maintenance-free force transmission during walking through the push-pull cable system.
• Sitting joint lock release with pre-release of the locking mechanism.
• Safety button for re-locking in case of accidental pre-release of the sitting joint.
• Choice of thermoplastic or laminate materials for the integration of an individually fabricated pelvic module.
• Torso bar is easily disassembled.
• Torso bar hip flexion adjusts up to 10°.
• Prefabricated lightweight alloy thigh bars with 0 mm, 5 mm and 10 mm offset available.

Please note that the pelvic tube is not included in the scope of delivery and therefore has to be ordered separately.

Maximum Body Weight 75 lbs (34 kg)
Pelvic Width 200 - 260 mm (7.874 - 10.236 in)
Age 4 - 8 Years
Quantity Set
616Z9=19X61

Shrinkdown Tubing

17Y142=L

Torso Bar

17Y143=0

Thigh Bar

17Y142=R

Torso Bar

17Y143=10

Thigh Bar

17Y143=5

Thigh Bar

17Y140=200

Pelvic Tube

17Y140=210

pelvic tube

17Y140=220

pelvic tube

17Y140=230

pelvic tube

17Y140=240

pelvic tube

17Y140=250

pelvic tube

17Y140=260

Pelvic Tube

17Y140=270

Pelvic Tube

17Y140=280

Pelvic Tube

17Y140=290

Pelvic Tube

17H100 Instructions for Use

Instructions for Use: 647H411 (EN/DE/FR/IT/ES/NL/SV/TR)

Published Date: December 2, 2012

Unilateral Joint System Knee and ankle joint – modular and multifunctional

Product Information: 646D197 (EN)

Published Date: February 1, 2013
